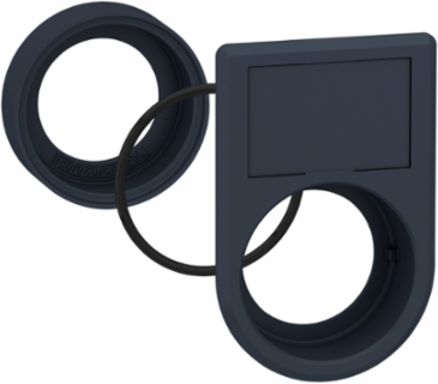

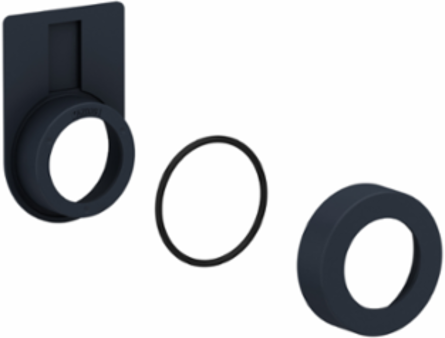

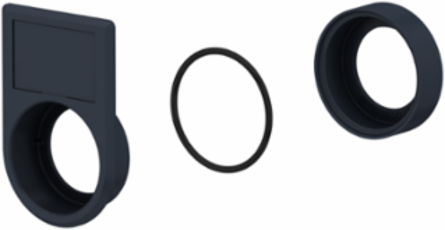

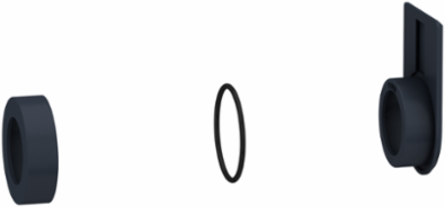

Schneider Electric ZB5AZ026 Harmony XB5 Flush Mounting Kit 30mm for 22mm Buttons, IP66, IK03

MPN: ZB5AZ026
PPN: SCH-ZB5AZ026
UNSPSC: 39122221

$15.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB5, flush mounting kit is compatible with Harmony XB5 illuminated push-buttons and selector switches and has a 2-line legend. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It allows new aesthetic style for your machines thanks to the flush design. It provides clear labelling area for simple indication of the button function.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Important Information Attributes

Customizable	0, no
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	24 %
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Accessory / Separate Part Category	mounting and fixing accessory
Customs Code	3926909989

Accessory / Separate Part Destination	selector switch high bezel, illuminated push-button high bezel
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Average Percentage Of Recycled Metal Content	12 %
Mounting Diameter	30.5 mm
Product Or Component Type	flush mounting kit
Range Of Product	Harmony XB5
Sustainable Packaging	No
Main Color Tint	black
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Ip Degree Of Protection	IP66 IEC 60529 front face), IP69 IEC 60529 front face)IP69K DIN 40050-9 front face)
Take Back	No
Recycled Metal Content At Cr Level	12 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Product Compatibility	ZB5AD.8, ZB5RZA0, ZB5AK, ZB5AD.9, ZB5AA.6, ZB5AW, ZB5RTA, ZB5AJ, ZB5AH..3, ZB5AD, ZB5AD.8
Reach Free Shvc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
