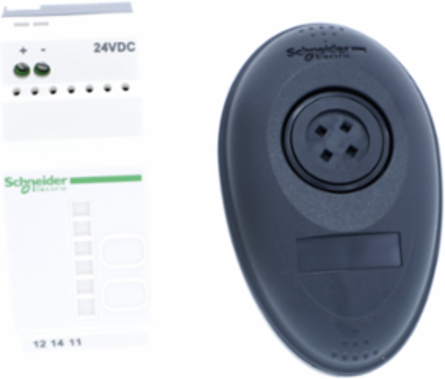

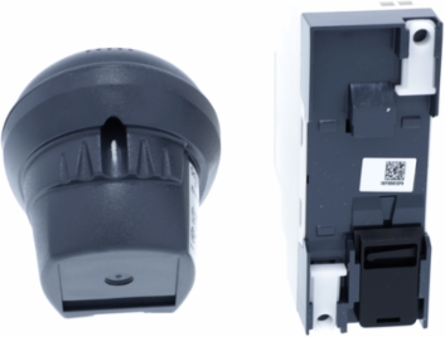

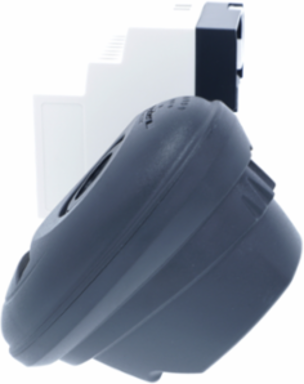

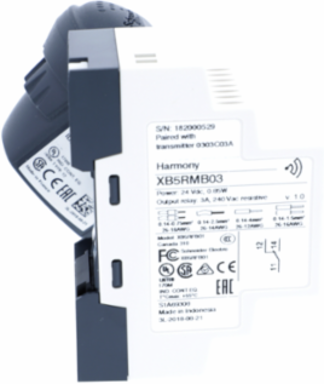

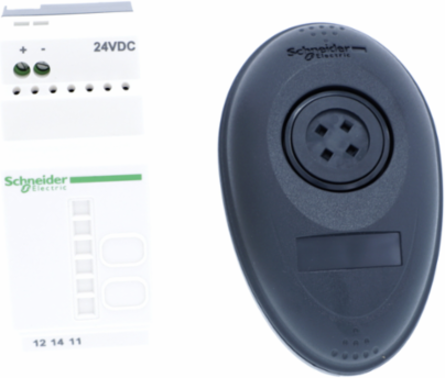

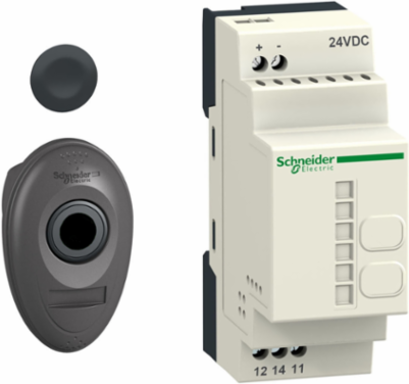

Schneider Electric XB5RMB03 Harmony XB5 Wireless Batteryless Push Button Kit, 22mm, 24V DC
- MPN: XB5RMB03
- PPN: SCH-XB5RMB03
CAD
$272.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

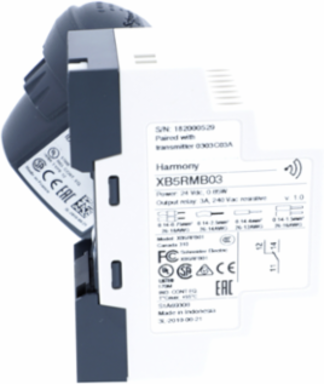

This Harmony XB5, flush black wireless push button and receiver unitset is supplied with 24V DC input and is mounted in a plastic handybox. This wireless batteryless push button with handybox is ideal for standalone remote control of conveyor and unaccessible machines. It is delivered pre-mounted in a handy box which saves the need for assembly in a cabinet. The receiver is also DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Communications & Management Attributes
- Communication Port Protocol
- Zigbee IEEE 802.15.4
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Radio Agreement
- RSS, SRRC, ICASA, FCC, ANATEL, ARIB T66
- Certificate Agency
- UL, GOST, CCC, C-tick, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.39829132368136816
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.401364420211267
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Antenna Gain
- 0 dBi
- Compatibility Code
- XB5R
- Device Short Name
- XB5R
- Level Or Class
- 5M00G7W
- Max Power Consumption In W
- 1 mW
- Number Of Channels
- 1
- Product Or Component Type
- wireless and batteryless package
- Range Of Product
- Harmony XB5R
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 31 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This pack comprises one wireless and batteryless push button assembled on fixing collar and one receiver. Push button and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless push button reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. Life time of the product is 10 years and product is adhering to IEC 60947-5-1 & UL 508 standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Us] Rated Supply Voltage
- 24 V24 V DC
- Package Weight(Lbs)
- 245.000 g
- Take-back
- No
- Customs Code
- 8526925000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial

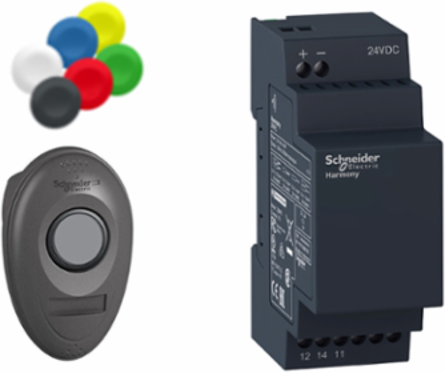

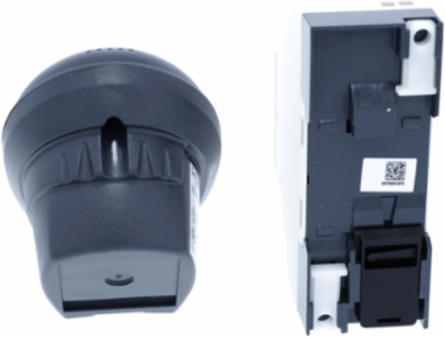

Kit Composition1 transmitter, 1 set of caps, 1 receiver, 1 fixing collars, 1 22 mm, 1 push-button head 22 mm, 1 handy box
Transmission Frequency2405 MHz transmitter, 2405 MHz receiver
Carbon Footprint Of The Distribution Phase [A4]0.09328328305379503, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.07960521794491032, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]25 kg CO2 eq., 24.958999999999996
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303007EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Antenna Typeomnidirectional
Control Typewireless and batteryless push-button handy box assembled on fixing collar
Head Materialplastic
MarkingCE
Modulation TechniqueO-QPSK
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
ReturnabilityYes
Sustainable PackagingNo
Type Of Receivernon-programmable receiver 1 relay)
Pep CodeENVPEP2303007EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 30.931544244891334
- Environmental Disclosure
- ENVPEP2303007EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2303007EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2303007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- wireless and batteryless package
Range Of ProductHarmony XB5R
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
