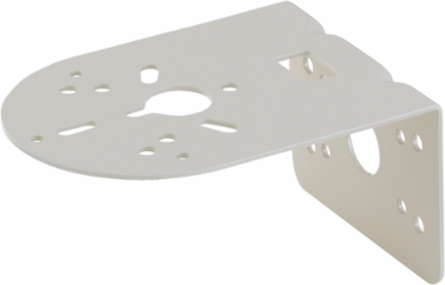

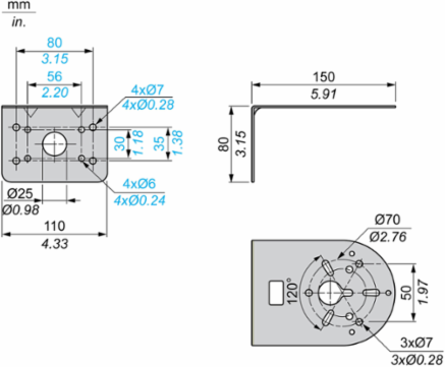

Schneider Electric XVCZ23 Metal L-Shaped Mounting Bracket for Harmony XVC Tower Light, 0.38 kg
- MPN: XVCZ23
- PPN: SCH-XVCZ23
CAD
$25.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The metal L-shaped mounting bracket from Schneider Electric has been meticulously designed for use with the Harmony XVC tower light, providing a robust solution for installation and integration into various industrial environments. Weighing just 0.38 kg, this bracket ensures stability while allowing for versatile positioning of the signal tower, enhancing visibility and operational efficiency. This essential component bridges the gap between your pilot devices and their functionality, standing as a reliable option for automating and controlling systems effectively.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Japan, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0499516673, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3950888798, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1904008EN
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Or Component Type
- mounting bracket
- Range Of Product
- Harmony XVC1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features, high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and product is adhering to EN standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; APAC
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
- Accessory / Separate Part Category
- mounting and fixing accessories
- Accessory / Separate Part Type
- fixing bracket
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 7326908688
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3335726356
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.4157033308
Local Data StatusPublishable
Return IndicatorY
Weee ScopeOut
Eoli Availability DisplayYes
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1907
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor mounting on vertical support
ReturnabilityYes
Sustainable PackagingYes
Pep CodeENVPEP1904008EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
Accessory / Separate Part Destinationcomplete pre-wired monolithic tower light
Accessory / Separate Part Designationmetal fixing bracket
Package Weight(Lbs)382.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1904008EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint3.1943165135
Environmental DisclosureENVPEP1904008EN
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP1904008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mounting bracket
Range Of ProductHarmony XVC1
ETIM
- ETIM 8
- EC001153
ETIM 9EC001153
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
