Schneider Electric XVUC26 Harmony XVU 60mm Blue Modular Tower Light with LED, IP65, 24V AC/DC
- MPN: XVUC26
- PPN: SCH-XVUC26
CAD
$144.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

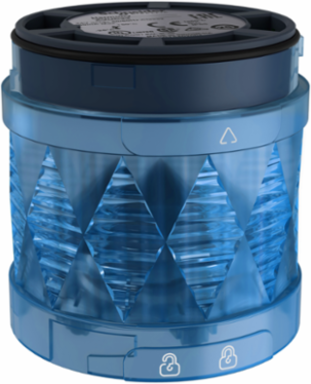

This blue illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Features
- The Schneider Electric (Square D) XVUC26 is a blue illuminated LED unit from the Harmony XVU modular tower light range. With a 60mm diameter, these lights are designed for high visibility on industrial machinery. Unlike standard indicators, the XVU series is "ultra-bright," ensuring that operators in large Canadian automotive plants or packaging facilities can see machine status from a significant distance.
- In most industrial environments, a steady blue light is used to indicate specific machine states, such as "Ready for Action," "Information Required," or "Special Process Active." The XVUC26 provides a constant, non-flashing signal that is clear and unambiguous, helping to streamline operations on complex assembly lines.
- The standout feature of the XVUC26 is its modularity. It is designed to be stacked with other color units (red, green, orange, etc.) and a base unit (like the XVUC21B) using a simple twist-and-lock mechanism. No tools are required to add or change the order of the lights, allowing for quick field reconfigurations without downtime.
- The unit is rated for 24V AC/DC, making it compatible with the standard control power found in almost all modern Canadian industrial control panels and PLCs. It is highly energy-efficient, with a current consumption of only 50mA and a maximum power dissipation of 2.5W.
- Machine floors can be dirty, wet, and vibratory. The XVUC26 is IP65 rated, meaning it is dust-tight and protected against water jets from any direction. It also features a 2gn vibration resistance, making it a reliable choice for heavy-duty Canadian manufacturing environments, from sawmills to food processing plants.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 24 V AC/DC
- Current Consumption
- <= 50 mA
- Ambient Air Temperature For Storage
- -40 to 70 C

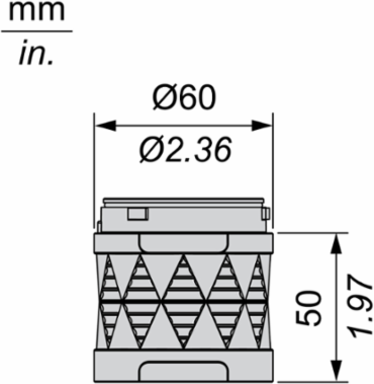

- Mounting Diameter
- 60 mm
- Vibration Resistance
- 2 gn
- Ingress Protection
- IP65
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403004EN
- Reach Regulation
- Contains SVHC above threshold
- China RoHS Regulation
- X
- Component Name
- XVU
- Assembly Style
- Up to 4 units with buzzer; up to 5 units customer assembly
- Light Source
- LED, blue
- Beacon Or Indicator Bank Unit Type
- LED unit
Maximum Power Dissipation2.5 W
Ambient Air Temperature For Operation-25 to 50 C
Length50 mm (1.97 in)
Net Weight0.064 kg (0.14 lb)
MaterialPC (polycarbonate) V-2 UL 94, V-0 UL 94
Product CertificationsUL, CE, CSA
RoHS Exemption InformationYes
Circularity ProfileENVEOLI1403004EN
Eu RoHS DirectivePro-active compliance, out of EU RoHS scope
Product Or Component TypeModular tower light
Range Of ProductHarmony XVU
Device ApplicationPackaging machine, automotive, machine tools
Signalling TypeSteady
