Schneider Electric XVUC45 Harmony XVU Modular Tower Light, 60mm, Blinking LED, IP65, 24V AC/DC
- MPN: XVUC45
- PPN: SCH-XVUC45
CAD
$151.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

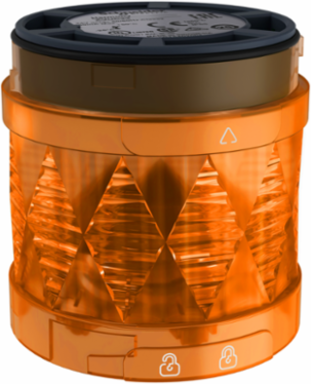

This Harmony XVU illuminated unit is supplied with 24V AC/DC and has an orange LED with a high brightness flashing light. This orange illuminated unit is designed as an accessory to be connected with base and create complete tower light. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine. It complies with international standards and certifications (CSA, UL, RoHS, EAC, CE standards and IP65).
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XVU
- Light Source
- LED, orange
- Component Name
- XVU
- Device Application
- automotive || machine tools || packaging machine
Mounting Diameter60 mm
Product Or Component Typemodular tower light
Beacon Or Indicator Bank Unit TypeLED unit
Complementary
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Length
- 50 mm
- Maximum Power Dissipation In W
- 0.9 W
- Assembly Style
- up to 4 units with buzzer || customer assembly, up to 5 units
MaterialPC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
Net Weight0.064 kg
Signalling Typeblinking
Environment
- Product Certifications
- UL || CE || CSA
- Ip Degree Of Protection
- IP65
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-50 °C
Vibration Resistance2 gn
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403004EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1403004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
