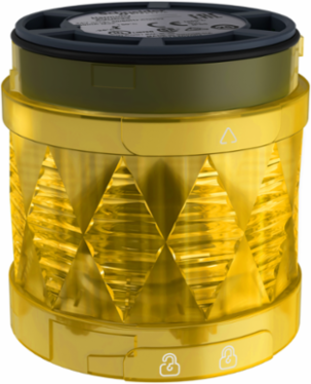

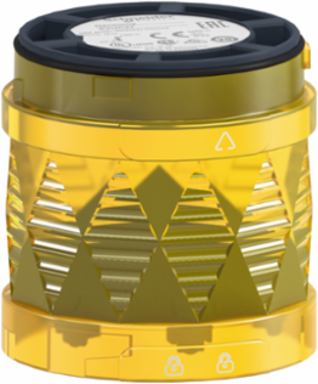

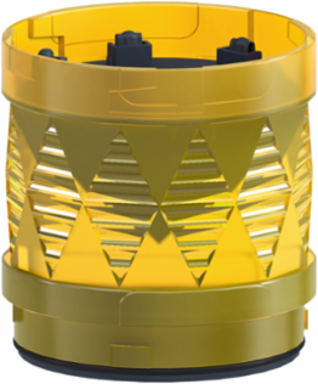

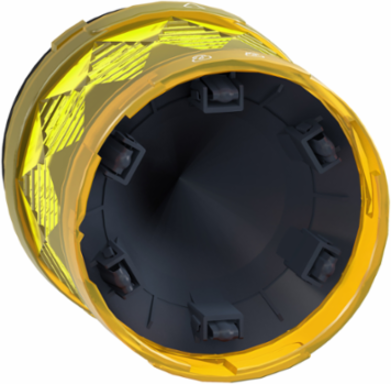

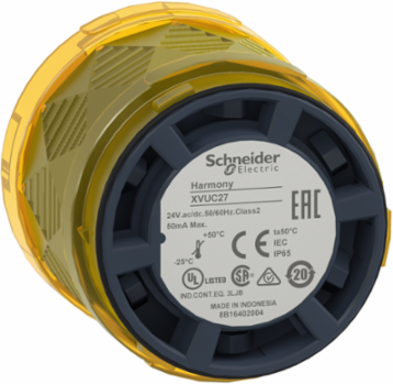

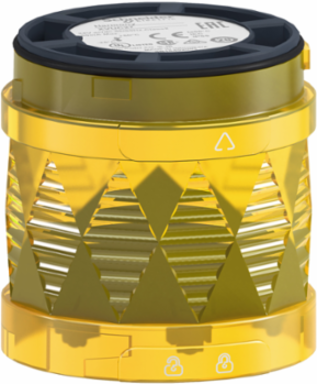

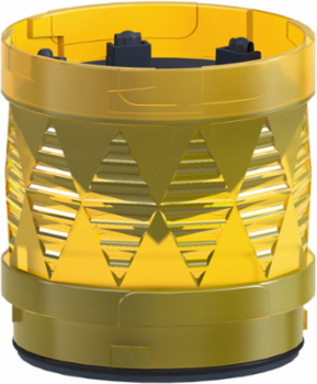

Schneider Electric XVUC28 Modular Tower Light, 60mm, Yellow LED, Steady Light, IP65, 24V AC/DC
- MPN: XVUC28
- PPN: SCH-XVUC28
CAD
$106.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

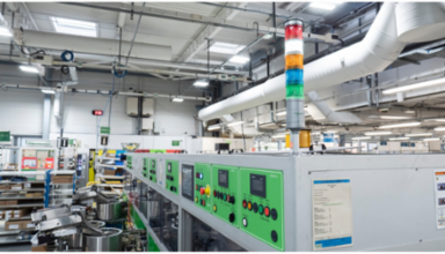

This Harmony XVU illuminated unit is supplied with 24V AC/DC and has a yellow LED with a high brightness steady light. This yellow illuminated unit is designed as an accessory to be connected with base and create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. Steady light schemes to allow for consistent alert of machine status to workfloor staff around the machine. It complies with international standards and certifications (CSA, UL, RoHS, EAC, CE standards and IP65).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Singapore, United States
Complementary Attributes
- Maximum Power Dissipation In W
- 2.5 W
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.00836886573396554, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.0661929013249039
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 12 kg CO2 eq., 12.180650684931505
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308032EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Assembly Style
- customer assembly, up to 5 units
- Component Name
- XVU
- Device Application
- automotive
- Material
- PC (polycarbonate) V-2 UL 94
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XVU
- Signalling Type
- steady
- Sustainable Packaging
- Yes
- Vibration Resistance
- 2 gn
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 26.28
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27

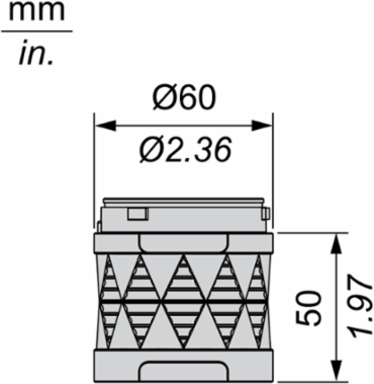

- Length Total
- 50 mm
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Package Weight(Lbs)
- 146.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.05577412242190091, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.4206599153154208
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Beacon Or Indicator Bank Unit TypeLED unit
Current Consumption<= 50 mA<= 50 mA
Light SourceLED, yellow
Mounting Diameter60 mm
Product Or Component Typemodular tower light
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint13 kg CO2 eq.
Pep CodeENVPEP2308032EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %16
Certificate AgencyCE
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 12.731646489727696
- Environmental Disclosure
- ENVPEP2308032EN
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308032EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308032EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- modular tower light
Range Of ProductHarmony XVU
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
