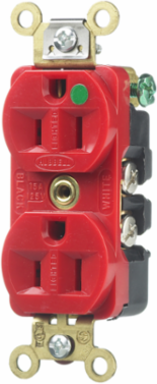

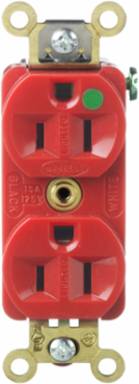

Hubbell Wiring Device-Kellems HBL8200ILR Hospital Grade Duplex Receptacle, 2-Pole 3-Wire, 15A 125V, Red, Illuminated Face
- MPN: HBL8200ILR
- UPC: 783585016467
- PPN: HBL-HBL8200ILR
- UNSPSC: 39121406
CAD
$113.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red, Illuminated Face.
Features
- Slender/compact design
- Impact-resistant finder groove face
- Triple wipe contacts
- Entire face illuminated by two LEDs
- Illuminated Face
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Red
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Illuminated Face
- Type
- Receptacle
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.33 in
- General Literature Asset 2 Display Text
- Healthcare Application Guide
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5262ILHR;5262ILHRA;8200ILR
- Material - Mounting Hardware
- Screw Mounting
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 26.200 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Height1.05 in
Industry Standard(s)CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationExtra Heavy Duty Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.33 in x 1.05 in
StandardCSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#14 AWG to #10 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextDuct Products Guide
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-15R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceDUP RCPT, HG, 15A 125V, 5-15R, IL, RD
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A040
Current Rating15 A
SeriesHospital Grade
BOX SIZE3.300x9.300x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585016467
Case - Total Units100 EA
Each - Pack DescriptionEach
NAICS Code335931A102
