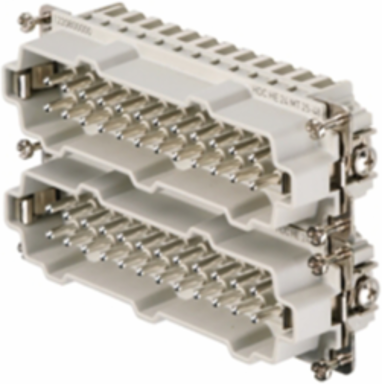

Weidmuller 1745870000 HDC HE 24 MT 25-48
- MPN: 1745870000
- PPN: WDM-1745870000
CAD
$30.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC insert, Pin, 500 V, 16 A, Number of poles: 24, Tension-clamp connection, Size: 8
Documentation & Downloads
Specifications
General Data
- Conductor cross-section
- 2.5 mm²
- Insulating material group
- IIIa
- Material
- Copper alloy
- Plugging cycles, silver
- ≥ 500
- Rated current (DIN EN 61984)
- 16 A
- Rated voltage (DIN EN 61984)
- 500 V
- Series
- HE
- Surface finish
- Silver passivated
- UL 94 flammability rating
- V-0
Insulating materialPC glass-fibre reinforced (UL-listed and railway-certified)
Insulation strength1010 Ω
Number of poles24
Pollution severity3
Rated impulse voltage (DIN EN 61984)6 kV
Rated voltage according to UL/CSA600 V AC/DC
Size8
TypePin
Volume resistance≤ 2mΩ
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E92202
ROHSConform

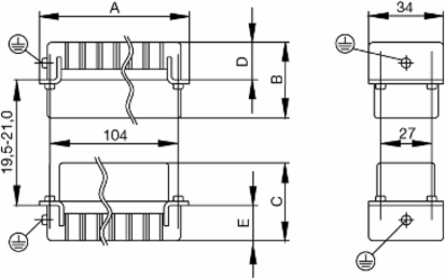

Dimensions And Weights
- Width
- 34 mm
- Height
- 33.5 mm
- Depth
- 111 mm
- Net weight
- 104 g
Width (inches)1.339 inch
Height (inches)1.319 inch
Depth (inches)4.37 inch
General Descriptions
- Number of poles
- 24
Size8
Dimensions
- Height of plug
- 33.5 mm
Total length base111 mm
Version
- Blade size, slotted (screw connection)
- SD 0.5 x 3.0
- Conductor cross-section, min.
- 0.25 mm²
- Size
- 8
- Surface finish
- Silver passivated
- Volume resistance
- ≤ 2mΩ
- Wire connection cross section AWG, min.
- AWG 24
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Conductor cross-section, max.2.5 mm²
MaterialCopper alloy
Stripping length, rated connection8 mm
Type of connectionTension-clamp connection
Wire connection cross section AWG, max.AWG 14
Wire connection cross section, finely stranded, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire cross-section, solid, max.2.5 mm²
Material
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- UL 94 flammability rating
- V-0
Colourbeige
MaterialCopper alloy
Connection Data
- Conductor cross-section, min.
- 0.25 mm²
- Wire connection cross section AWG, min.
- AWG 24
Conductor cross-section, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Connection Data Pe
- Blade size, crosshead
- size PH1
- Connection type PE
- Screw connection
- Rated cross-section
- 4 mm²
- Tightening torque, max. PE connection
- 1.5 Nm
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross section, AWG (PE), max.
- AWG 12
- Wire cross-section, solid, max.
- 2.5 mm²
Blade size, slotted (PE connection)SD 0.8 x 4.0
Fixing screwM 4
Stripping length PE connection10 mm
Tightening torque, min. PE connection1.2 Nm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire cross section, AWG (PE), min.AWG 20
Wire cross-section, solid, min.0.5 mm²
Classifications
- ETIM 6.0
- EC000438
- eClass 9.0
- 27-44-02-05
- eClass 10.0
- 27-44-02-05
ETIM 7.0EC000438
eClass 9.127-44-02-05
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC insert
- Type
- Pin
- Blade size, crosshead
- size PH1
Product typeInsert
Type of connectionTension-clamp connection
Temperatures
- Limit temperature
- -40 °C ... 125 °C
