Weidmuller 1354950000 HDC HQP ALU CS
- MPN: 1354950000
- PPN: WDM-1354950000
CAD
$64.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

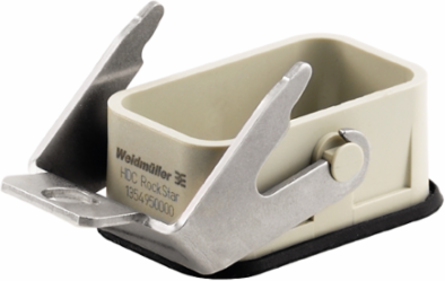

HDC enclosures, Size: HQ, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Material of locking element
- Stainless steel, rust-proof
- Series
- HQ
Housing main materialPlastic
Protection degreeIP65
UL 94 flammability ratingV-0
Approvals
- Approvals
- CE
ROHSConform
Dimensions And Weights
- Width
- 35 mm
- Height
- 40.6 mm
- Depth
- 67.1 mm
- Mounting dimension - width
- 32.2 mm
- Net weight
- 27 g
Width (inches)1.378 inch
Height (inches)1.598 inch
Depth (inches)2.642 inch
Mounting dimension - height13.4 mm
General Descriptions
- Size
- HQ
Protection degreeIP65

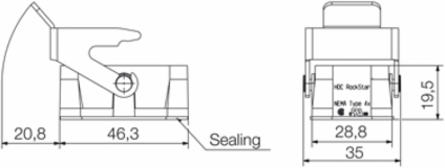

Dimensions
- Height of housing B
- 19.5 mm
- Total length housing
- 46.3 mm
Hole pitch length A232.2 mm
Width housing C28.8 mm
Version
- Clamp version
- Side-locking clamp
- Design of housing
- Open base
- Sealing
- NBR
- Suitable for ModuPlug
- No
- Type
- Bulkhead (feed-through)
DesignStandard
Design of locking systemSide-locking clamp on lower side
SizeHQ
Top part/bottom part/lidlower part
Material
- Colour
- beige
UL 94 flammability ratingV-0
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Product Information
- Product information
- The HQ version now offers particular protection - the bulkhead housing (cover and metal clamp) can be secured with a padlock.
Design
- Product family
- HDC enclosures
- Type
- Bulkhead (feed-through)
Product typeEnclosures
Temperatures
- Limit temperature
- -40 °C ... 125 °C
