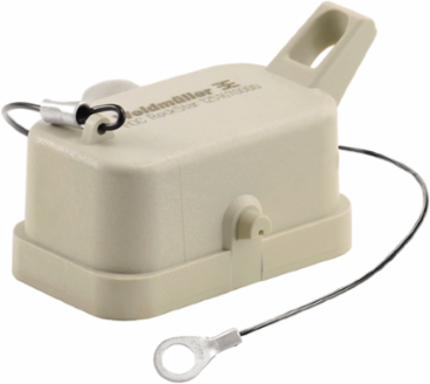

Weidmuller 1251670000 HDC HQP DOD 2BO CS
- MPN: 1251670000
- PPN: WDM-1251670000
CAD
$4.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: HQ, Protection degree: IP65, Cover for lower part of housing, Side-locking clamp on lower side, Standard
Documentation & Downloads
Specifications
General Data
- EMC housings
- No
- Protection degree
- IP65
- UL 94 flammability rating
- V-0
Housing main materialPlastic
SeriesHQ
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 35 mm
- Height
- 23.5 mm
- Depth
- 48.4 mm
- Net weight
- 12 g
Width (inches)1.378 inch
Height (inches)0.925 inch
Depth (inches)1.906 inch
General Descriptions
- Size
- HQ
Protection degreeIP65

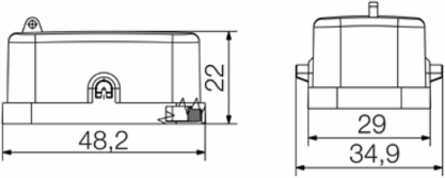

Dimensions
- Cable entry
- with male
- Total length housing
- 48.4 mm
Height of housing B23.5 mm
Width housing C29 mm
Version
- Cable entry
- with male
- Design
- Standard
- Design of locking system
- Side-locking clamp on lower side
- Suitable for ModuPlug
- No
- Type
- Cover
Clamp versionSide-locking clamp
Design of housingCover for lower part of housing
SizeHQ
Top part/bottom part/lidCover
Material
- Colour
- beige
UL 94 flammability ratingV-0
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Product Information
- Product information
- The HQ version now offers particular protection - the bulkhead housing (cover and metal clamp) can be secured with a padlock.
Design
- Product family
- HDC enclosures
- Type
- Cover
Product typeEnclosures
Cable entrywith male
Temperatures
- Limit temperature
- -40 °C ... 125 °C
