Weidmuller 1079910000 HDC IP68 24B MD 3M25
- MPN: 1079910000
- PPN: WDM-1079910000
CAD
$72.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

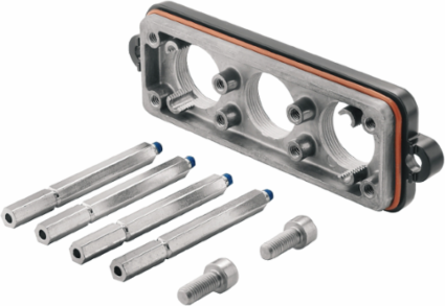

HDC enclosures, Size: 8, Protection degree: IP68, IP69K, Cover, Clamping yoke connection, Standard, Size of cable entries: M 25
Documentation & Downloads
Specifications
General Data
- EMC housings
- Yes
- Material of locking element
- Stainless steel, rust-proof
- Series
- HighPower
- Tightening torque
- 11 Nm
Housing main materialdiecast aluminium
Protection degreeIP68, IP69K
Surface finishPowder coating
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 57 mm
- Height
- 19 mm
- Depth
- 181 mm
- Mounting dimension - width
- 164 mm
Width (inches)2.244 inch
Height (inches)0.748 inch
Depth (inches)7.126 inch
Net weight468 g
General Descriptions
- Size of cable entries
- M 25
- Protection degree
- IP68, IP69K
Size8
Version
- Cable entry
- w. threading
- Design
- Standard
- Design of locking system
- Clamping yoke connection
- Number of cable entry on top
- 3
- Sealing
- Silicone rubber
- Size of cable entries
- M 25
- Top part/bottom part/lid
- Cover
Clamp versionClamping yoke connection
Design of housingCover
Internal threadM 25
Number of cable entry sideways0
Size8
Tightening torque11 Nm
TypeCover
Material
- Colour
- black
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Design
- Product family
- HDC enclosures
- Type
- Cover
Product typeEnclosures
Cable entryw. threading
Temperatures
- Limit temperature
- -50 °C ... 120 °C
