Weidmuller 1061750000 HDC KIT HE-P 16.121
- MPN: 1061750000
- PPN: WDM-1061750000
CAD
$95.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

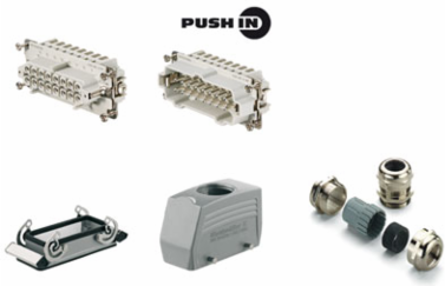

RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Size: 6, Poles: 16, PUSH IN, 500 V, 16 A, diecast aluminium, PG 21
Documentation & Downloads
Specifications
General Data
- Cable glands
- PG 21
- Material
- diecast aluminium
- Rated current (DIN EN 61984)
- 16 A
- Series
- HE
Connection type PEScrew connection
Number of poles16
Rated voltage (DIN EN 61984)500 V
Size6
Approvals
- Approvals
- EAC
Dimensions And Weights
- Net weight
- 635 g
General Descriptions
- Number of poles
- 16
- Size
- 6
Size of cable entriesPG 21
Version
- Conductor cross-section, max.
- 4 mm²
- Material
- diecast aluminium
- Surface finish
- Powder coating
Conductor cross-section, min.0.5 mm²
Size6
Type of connectionPUSH IN
Material
- Colour
- grey
Materialdiecast aluminium
Connection Data
- Conductor cross-section, min.
- 0.5 mm²
Conductor cross-section, max.4 mm²
Classifications
- ETIM 6.0
- EC002943
- eClass 9.0
- 27-44-02-92
- eClass 10.0
- 27-44-02-92
ETIM 7.0EC002943
eClass 9.127-44-01-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1, DIBP 84-69-5
Design
- Product family
- HDC kits
- Type of connection
- PUSH IN
Product typeKit
Temperatures
- Limit temperature
- -40 °C ... 100 °C
