Weidmuller 1061800000 HDC KIT HE-P 24.131
- MPN: 1061800000
- PPN: WDM-1061800000
CAD
$108.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

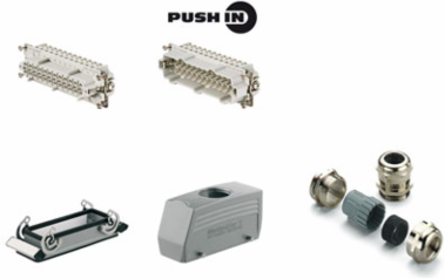

RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Size: 8, Poles: 24, PUSH IN, 500 V, 16 A, diecast aluminium, PG 21
Documentation & Downloads
Specifications
General Data
| Cable glands | PG 21 |
|---|---|
| Material | diecast aluminium |
| Rated current (DIN EN 61984) | 16 A |
| Series | HE |
| Connection type PE | Screw connection |
|---|---|
| Number of poles | 24 |
| Rated voltage (DIN EN 61984) | 500 V |
| Size | 8 |
Approvals
| Approvals | EAC |
|---|
Dimensions And Weights
| Net weight | 806 g |
|---|
General Descriptions
| Number of poles | 24 |
|---|---|
| Size | 8 |
| Size of cable entries | PG 21 |
|---|
Version
| Conductor cross-section, max. | 4 mm² |
|---|---|
| Material | diecast aluminium |
| Surface finish | Powder coating |
| Conductor cross-section, min. | 0.5 mm² |
|---|---|
| Size | 8 |
| Type of connection | PUSH IN |
Material
| Material | diecast aluminium |
|---|
Connection Data
| Conductor cross-section, min. | 0.5 mm² |
|---|
| Conductor cross-section, max. | 4 mm² |
|---|
Classifications
| ETIM 6.0 | EC002943 |
|---|---|
| eClass 9.0 | 27-44-02-92 |
| eClass 10.0 | 27-44-02-92 |
| ETIM 7.0 | EC002943 |
|---|---|
| eClass 9.1 | 27-44-01-90 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1, DIBP 84-69-5 |
|---|
Design
| Product family | HDC kits |
|---|---|
| Type of connection | PUSH IN |
| Product type | Kit |
|---|
Temperatures
| Limit temperature | -40 °C ... 100 °C |
|---|
