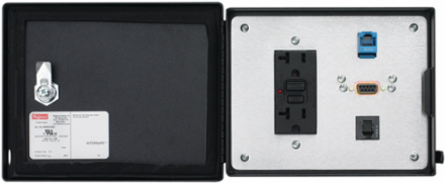

nVent Hoffman HDP5ETHDHCC InterSafe Data Interface Port 143x176x24mm, IP66, NEMA 12, Composite
nVent Hoffman HDP5ETHDHCC InterSafe Data Interface Port 143x176x24mm, IP66, NEMA 12, Composite
- MPN: HDP5ETHDHCC
- UPC: 783510161774
- PPN: HOF-HDP5ETHDHCC
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1461.38/ EA
Description
InterSafe Data Interface Port 143x176x24mm, IP66, NEMA 12, Composite
Features
- Steel and Stainless Steel doors are welded and ground
- Back plate is aluminum
- All standard configurations include a GFCI or standard duplex receptacle with a 5-A circuit breaker for added safety
- Door gasket (between the door and plate assemblies) and plate gasket (between the plate assembly and the enclosure) together provide a tight seal
- Template provided for accurate enclosure cutout dimensions
- Quarter-turn latch with screwdriver slot and padlock hasp on all steel and stainless steel door models for convenience and security
- Quarter-turn latch with screwdriver slot on polycarbonate models
Specifications
Specifications
- BABA
- Contact Manufacturer
- Product Family
- InterSafe
- Thickness (T)
- 1.5
- IP Rating
- IP66
- Weight
- 3
- Configuration 2
- RJ45
- Sub Brand
- InterSafe
- Size
- 143x176x24mm
Protection RatingNEMA Type 12
FinishSmooth Matte
Configuration120 VAC Duplex Receptacle
Accessory TypeInterSafe Data Interface Ports
Configuration 1DB9F
Works WithNEMA & IEC
MaterialComposite
