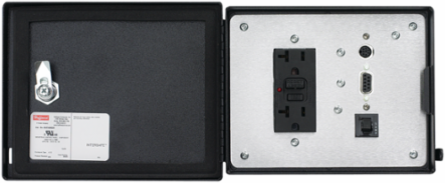

nVent Hoffman HGF58MDHCC InterSafe Data Interface Port, GFCI, IP66, 143x176x24mm, Composite
- MPN: HGF58MDHCC
- UPC: 783510161880
- PPN: HOF-HGF58MDHCC
- UNSPSC: 39121302
CAD
$1234.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
InterSafe Data Interface Port, GFCI, IP66, 143x176x24mm, Composite
Features
- Steel and Stainless Steel doors are welded and ground
- Back plate is aluminum
- All standard configurations include a GFCI or standard duplex receptacle with a 5-A circuit breaker for added safety
- Door gasket (between the door and plate assemblies) and plate gasket (between the plate assembly and the enclosure) together provide a tight seal
- Template provided for accurate enclosure cutout dimensions
- Quarter-turn latch with screwdriver slot and padlock hasp on all steel and stainless steel door models for convenience and security
- Quarter-turn latch with screwdriver slot on polycarbonate models
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Product Family | InterSafe |
| Thickness (T) | 1.5 |
| IP Rating | IP66 |
| Weight | 3 |
| Configuration 2 | DB9F |
| Sub Brand | InterSafe |
| Size | 143x176x24mm |
| Protection Rating | NEMA Type 12 |
|---|---|
| Finish | Smooth Matte |
| Configuration | 120 VAC GFCI Receptacle |
| Accessory Type | InterSafe Data Interface Ports |
| Configuration 1 | Female 8-pin Mini DIN |
| Works With | NEMA & IEC |
| Material | Composite |
