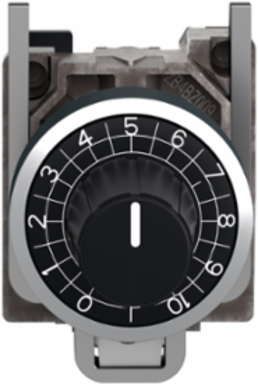

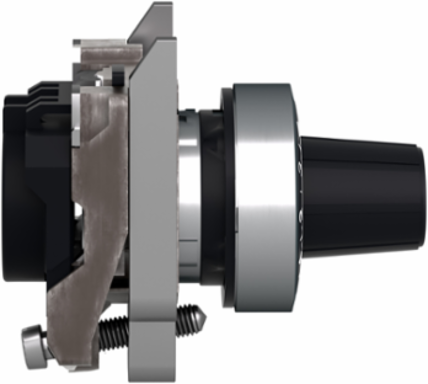

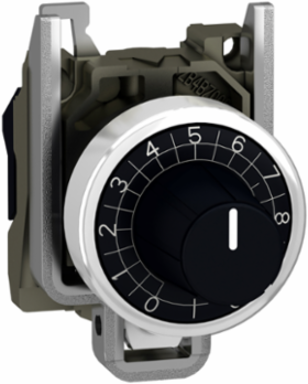

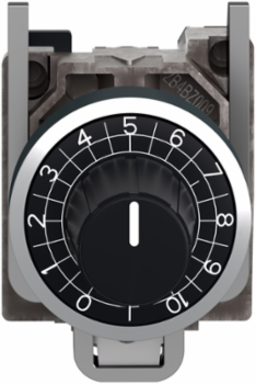

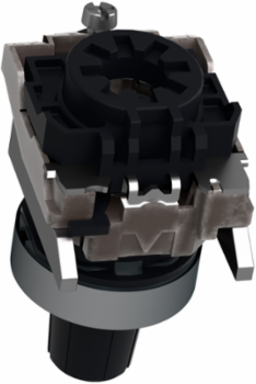

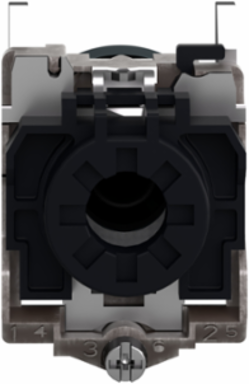

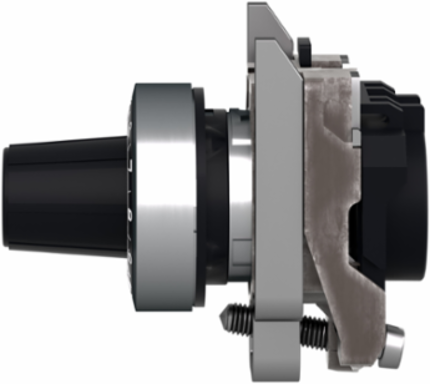

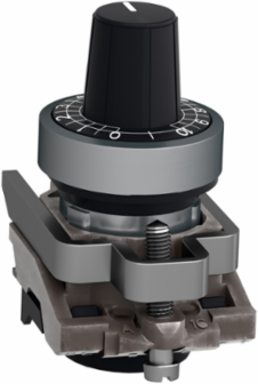

Schneider Electric ZB4BD912 Harmony XB4 Potentiometer Head, 22mm, Metal, for 6mm Shaft, IP66
- MPN: ZB4BD912
- PPN: SCH-ZB4BD912
CAD
$150.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4, head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- Engineered for precise instrument interfacing, this operator head fits both standard 6 mm and 6.35 mm (1/4 in) potentiometer shafts. This dual compatibility eliminates the guesswork of matching sizing standards, allowing industrial maintenance technicians to instantly retrofit existing variable frequency drives (VFDs), inverters, or timing relays.
- Featuring a robust, textured knurled knob with a high-visibility white indicator line, this operator offers an optimal tactile grip for precise tuning adjustments. The non-slip surface ensures operators can make fine, reliable calibration adjustments even when wearing heavy industrial work gloves or handling equipment in oily environments.
- Constructed from a rugged, chromium-plated metal base, this Harmony XB4 component is purpose-built to withstand severe physical abuse on heavy industrial machinery. The solid metal ring delivers outstanding vibration resistance up to 5 gn and impact protection rated to IK03, ensuring your control panels remain structurally sound and free from mechanical failure.

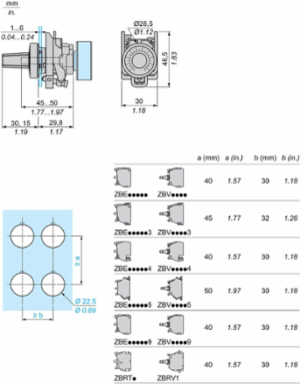

- Designed to mount into a standard 22.5 mm panel hole, this modular head seamlessly slots into standard pre-drilled operator panels and enclosures. This industry-standard footprint simplifies deployment and minimizes configuration downtime by eliminating the need for specialized punch tools or non-standard enclosure retrofits.
- Boasting an impressive IP66 ingress protection rating along with UL Type 4X and NEMA 13 certifications, this device withstands intensive 1015 psi hot-water washdowns and corrosive chemical exposure. This makes it an ideal interface solution for food processing facilities, outdoor wastewater treatment plants, and coastal marine environments where moisture and salt air typically destroy lesser-grade controls.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Color Of Marking
- white
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0104615076, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0129370763, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 70.14
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 66 %
- Device Short Name
- ZB4
- Group Of Product
- potentiometer knurled knob
- Main Group
- potentiometer
- Operator Profile
- knurled knob, with white)
- Product Or Component Type
- head + mounting base for potentiometer
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- "ENVPEP2308005EN"
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0918796766
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.5325164465
Local Data StatusPublishable
Return IndicatorY
Future Msrp90.80
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308005EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content21 %
Compatibility CodeZB4
Electrical Shock Protection Classclass I conforming to IEC 60536
Head Typestandard
Mounting Diameter22 mm
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Color Of Markingwhite
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Package Weight(Lbs)80.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Nema Degree Of Protection
- UL type 4X/13, NEMA 13, NEMA 4X
- Take Back
- No
- Recycled Metal Content At Cr Level
- 21 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.647794707
- Environmental Disclosure
- "ENVPEP2308005EN"
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Product Compatibilityfor use with Ø 6 mm shaft, for use with Ø 6 mm shaft
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308005EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep Code"ENVPEP2308005EN"
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head + mounting base for potentiometer
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
