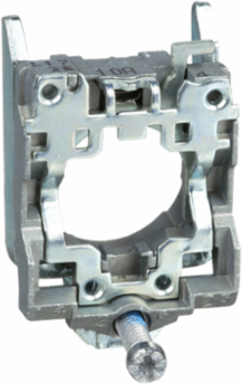

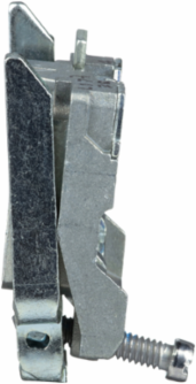

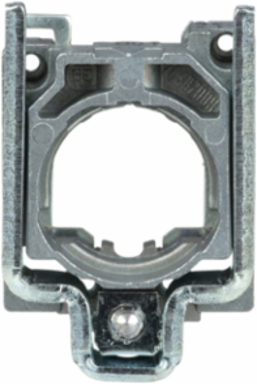

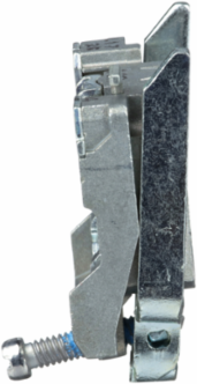

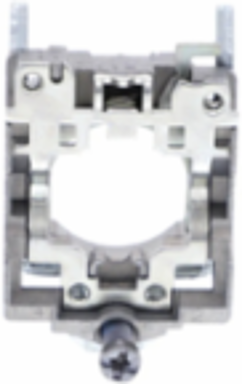

Schneider Electric ZB4BZ009 Harmony XB4 Body Fixing Collar for Electrical Block, Metal
- MPN: ZB4BZ009
- PPN: SCH-ZB4BZ009
CAD
$5.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- This is a genuine Harmony XB4 series mounting base (also known as a fixing collar) designed specifically for use with ZB4-B metal push buttons and pilot light heads. It serves as the essential structural interface between the operator head and the contact blocks, ensuring a rigid, permanent connection that won't loosen under heavy vibration.
- Constructed from high-strength Zamak (zinc alloy), this mounting base offers superior mechanical resistance compared to plastic alternatives. Its robust metallic composition ensures long-term grounding continuity and prevents the "cracking" common in high-torque installations, making it the standard choice for heavy-duty machinery and control panels.
- The ZB4BZ009 features a precision-engineered "twist-and-lock" mechanism that allows for tool-free snap-on mounting of Schneider Electric ZBE series contact blocks. It is fully compatible with the 22mm Harmony XB4 chrome-plated metal range, allowing you to stack multiple blocks (single or double) to customize your control logic without requiring extra mounting hardware.
- When paired with the appropriate ZB4 head and contact blocks, this mounting collar helps maintain the integrity of NEMA 4X, 12, and 13, as well as IP66, IP67, and IP69K ratings. This ensures your panel remains protected against high-pressure water jets, dust, and corrosive chemicals, reducing the risk of electrical failure and expensive downtime.
- Engineered to meet rigorous global certifications including UL 508, CSA C22.2 No 14, and EN/IEC 60947-5-1, this component ensures your installations are code-compliant and safe for international deployment. Its vibration-resistant design is particularly critical for maintaining circuit integrity in automotive, food processing, and material handling applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 0, no |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0075893238 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0 kg CO2 eq., 0.0425281139 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 17 % |
| Material | metal |
| Product Or Component Type | body fixing collar |
| Range Of Product | Harmony XB4 |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.1 kg CO2 eq. |
| Accessory Designation | fixing collar |
| Pep Code | ENVPEP2308035EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 84 |
| Accessory / Separate Part Destination | electrical block |
| Accessory / Separate Part Designation | fixing collar |
| Package Weight(Lbs) | 38.000 g |
| Warranty (In Months) | 18 |
| Customs Code | 8538908180 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0007846263, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0012034164, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Head Type | standard |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 10 |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Accessory Category | mounting and fixing accessories |
| Accessory Destination | electrical block |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Accessory / Separate Part Category | mounting and fixing accessories |
| Accessory / Separate Part Type | body fixing collar |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -0.0206 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 17 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0521054804 |
| Environmental Disclosure | ENVPEP2308035EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | body fixing collar |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC001020 |
|---|
| ETIM 9 | EC001020 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
