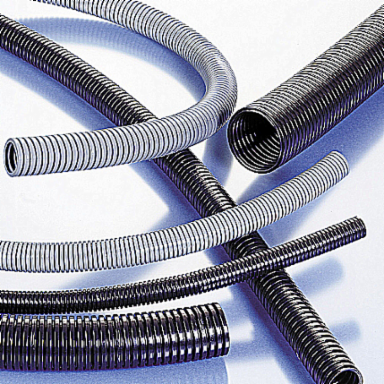

PMA VAMG-36S.30 Heavy Duty Conduit
- MPN: VAMG-36S.30
- UPC: 786209976574
- PPN: T-B-VAMG-36S.30
CAD
$1180.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Wall, Flexible Gray Conduit, (VAM) Material - Polyamide 6, Conduit Size NW - 36, 30 Meters
Features
- Good resistance to ultra violet rays and weathering
- High impact and compression strength
- High stiffness
- Outstanding self-extinguishing characteristics
- Minimal development of smoke and gases
- Free from halogens and cadmium
- Renewable Energy
- Rail
- In passenger areas of railway vehicles
- Public buildings to include hospitals, hotels, airports, train and subway stations and shopping centers
Specifications
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 42.4mm |
| Material | Polyamide 6 |
| Operating temperature | -40 - +105°C |
| Colour | Grey |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | N |
| Approved according to Lloyd's Register TA | Y |
| Approved according to DIN 5510 | Y |
| Nominal diameter | 40mm |
|---|---|
| Inner diameter | 35.8mm |
| Compressive strength | 350N |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | N |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Machine |
| Outside Diameter | 1.67 Inch |
| Flexibility | Medium Flexibility |
| Color | Gray |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Heavy Duty Conduit |
| Trade Size | NW36 |
| Length | 30 m |
| Material | Polyamide/Nylon 6 |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 47.244x31.496x30.709 |
| Outer Quantity | 6 |
|---|---|
| Weight Uom | 0.07 lbs. Each |
