PMA ESDT-36B.30 Medium Wall Conduit
- MPN: ESDT-36B.30
- UPC: 786209955821
- PPN: T-B-ESDT-36B.30
CAD
$2008.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

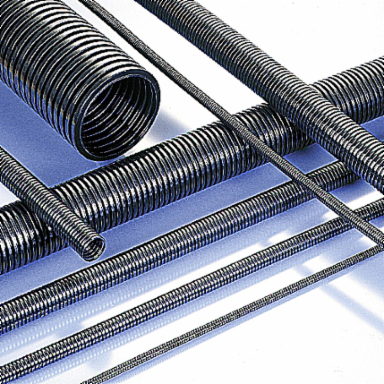

Medium Wall Very Flexible Black Conduit, (ESD) Material - Polyamide 12, Conduit Size NW - 36, 30 Meters
Features
- Prevents electrostatic charging
- Excellent UV-resistance
- High dynamic load resistance
- Very good cold temperature performance
- Free from halogens and cadmium
- Very good chemical properties
- Robotic
- For dynamic applications in robotics and automation where electrostatic charge and uncontrolled discharge need to be avoided
- Indoor and outdoor use
Specifications
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 42.5mm |
| Material | Polyamide 12 |
| Operating temperature | -40 - +90°C |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | N |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
| Nominal diameter | 40mm |
|---|---|
| Inner diameter | 36.5mm |
| Compressive strength | 175N |
| Fire resistance in accordance with UL94 | HB |
| Colour | Black |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | N |
| Approved according to Lloyd's Register TA | N |
| Approved according to DIN 5510 | N |
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Machine |
| Outside Diameter | 1.67 Inch |
| Length | 30 m |
| Material | Polyamide/Nylon 12 |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Medium Wall Conduit |
| Trade Size | NW36 |
| Inside Diameter | 1.44 Inch |
| Flexibility | Very Flexible |
| Color | Black |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 47.244x31.496x29.528 |
| Outer Quantity | 6 |
|---|---|
| Weight Uom | 0.11 lbs. Each |
