Homac HDL 1/0 N Heavy-Duty Lug
- MPN: HDL 1/0 N
- UPC: 783786730469
- PPN: T-B-HDL 1/0 N
CAD
$41.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

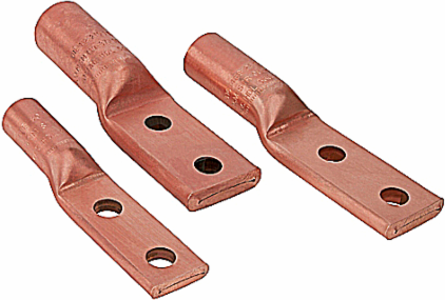

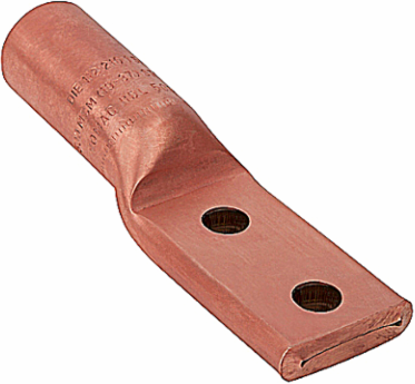

Copper Heavy-Duty Two-Hole NEMA Lugs, Wire Size 1/0
Features
- Made from heavy-wall Electrolytic Grade seamless Copper tubing. Able to handle the most severe heavy-loading applications.
- Generous inside chamfers for easy cable insertion.
Specifications
Packaging
| Outer Quantity | 50 |
|---|---|
| Weight Uom | 0.29 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121613 Grounding devices or assemblies |
|---|---|
| Brand Name | Homac |
| Standard | IEEE837-2014 |
| Insulation | None |
| IGCC | 4909 Grounding devices or assemblies |
|---|---|
| Type | Heavy-Duty Lug |
| Conductor Material | Copper |
| Length | 5-1/4 in |
European Specifications (ETIM)
| ETIM | EC001051 Tube cable lug for copper conductors |
|---|---|
| Slender flange model | N |
| With sight-hole | N |
| Number of fixing holes | 2 |
| Connecting angle | Straight |
|---|---|
| Insulated | N |
| Material | Copper |
