Hubbell Wiring Device-Kellems

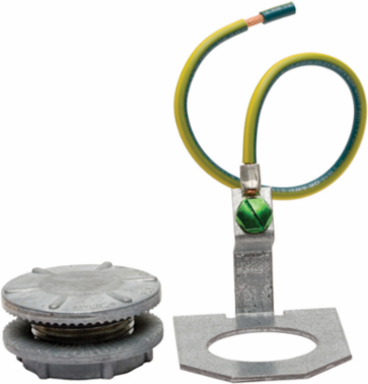

Hubbell Wiring Device-Kellems MICPK30 Industrial Grade IEC Pin and Sleeve Closure Plug Kit for 30A Interlock, IP67

Industrial Grade IEC Pin and Sleeve Closure Plug Kit for 30A Interlock, IP67
  • MPN: MICPK30
  • UPC: 783585258300
  • PPN: HBL-MICPK30
  • UNSPSC: 39122205

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$67.35/ EA

Description

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessories, Closure Plug Kit, For 30A Mechanical Interlock

Features

  • Industrial Grade
  • Accessories
  • Closure Plug Kit
  • Standard Product

Specifications

Specifications

Country of Origin
Brazil
Industry Standard(s)
UL Listed
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current.;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Endurance - Mechanical: 10,000 cycles, Electrical: 6,000 cycles;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact.;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Product Identification -  Identification and ratings are a part of the external label and molded into the receptacle mount.;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Standard
UL Listed
Weight
0.45 lb.
General Literature Asset 2 Display Text
Pulp & Paper Solutions
Dielectric Strength
Withstands 3000V AC minimum
Class Code
A12
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A12A180
Construction
Fabricated
Base Unit of Measure
EA
Carton - Gross Weight per Pack
5.200 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Lowest Level UOM
Each
Width3.238 in
Ingress ProtectionIP67
Operating Cycles10,000 Cycles Minimum
Special FeaturesStandard Product
TypeAccessories
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
StyleWatertight Closure Plug Kits
Description - InvoicePS, IEC, CLOSEURE PLUG, 30A, MECHINT
Harmonization Code7907006000
MSDS FlagNo
Material - Mounting HardwareMounts in KO
SeriesFused
BOX SIZE8.600x10.200x8.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585258300
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
No
