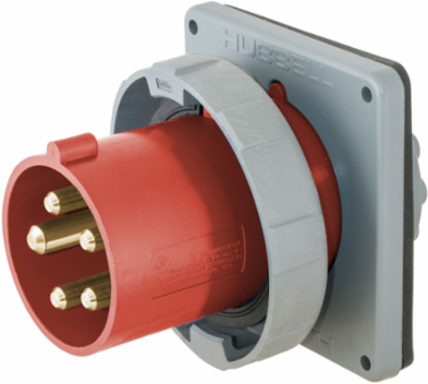

Hubbell Wiring Device-Kellems HBL520B7W Watertight IEC Male Flanged Inlet, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire
- MPN: HBL520B7W
- UPC: 783585405278
- PPN: HBL-HBL520B7W
- UNSPSC: 39121406
CAD
$389.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight
Features
- Rugged one-piece housing
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL520B7W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Width
- 4.800 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1.;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- High Ampacity Watertight Connections
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
- Type
- Watertight Inlet
- Wattage
- 9600
- Voltage Rating Description
- 3 Phase Y 277/480 VAC
- Display Size
- Standard Sized Product
- Number Of Poles
- 4-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, INLET, 4P5W, 20A 277/480V, W/T
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 20 A
- Series
- HBL Heavy Duty
- BOX SIZE
- 5.600x21.700x10.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585405278
- Case Weight
- 10.500 lb.
- Lowest Level UOM
- Each
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating20 A
Industry Standard(s)CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032
Amperage Rating20 A
ColorRed
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Wires5-Wire
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating3 Phase Y 277/480 VAC
Wire Size#14 AWG to #10 AWG
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number520B7W
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code335931A104
Certifications
- EU RoHS Indicator
- Yes
