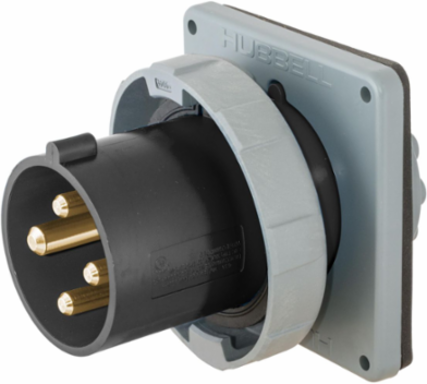

Hubbell Wiring Device-Kellems HBL420B5W Heavy Duty Watertight IEC Pin and Sleeve Inlet, 20A 3-Phase 600V AC, 3-Pole 4-Wire
- MPN: HBL420B5W
- UPC: 783585404257
- PPN: HBL-HBL420B5W
- UNSPSC: 39121406
CAD
$320.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 20A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
Features
- Rugged one-piece housing
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
- Watertight
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Wattage
- 12000 W
- Number of Wires
- 4-Wire
- Operating Temperature
- -40°C to 75°C continuous
- Material
- Thermoplastic
- Locking Ring Material
- PBT
- Retainer Material
- High-Impact Thermoset
- Gasket Material
- Santoprene
- Dielectric Voltage
- 3000 V AC
- EU RoHS Indicator
- Yes
- Color
- Black
Voltage600 V AC, 3 Phase
Number of Poles3-Pole
PhaseThree Phase
ConnectivityPressure Terminal Screws
Special FeaturesWatertight
Sealing Gasket MaterialSolid Neoprene
Terminal Screws MaterialStainless Steel
Ingress ProtectionType 3R, 3RX, 4X, IP68, IP69K
Flammability RatingV-0
NEMA RatingNon-NEMA
Country of OriginUS
