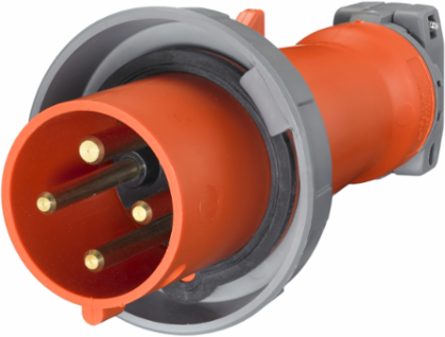

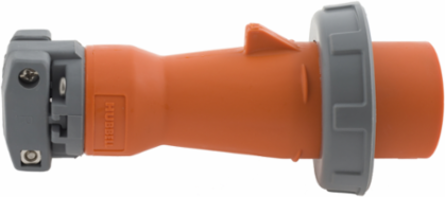

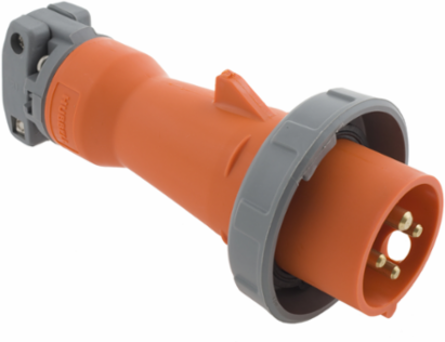

Hubbell Wiring Device-Kellems HBL430P12W Heavy Duty Watertight Male Plug, 30A 125/250V, 3-Pole, 4-Wire
- MPN: HBL430P12W
- UPC: 783585404561
- PPN: HBL-HBL430P12W
- UNSPSC: 39121402
CAD
$595.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 30A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Orange, Watertight
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Heavy duty external cord grips
- Watertight
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL430P12W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Healthcare Application Guide
- Country of Origin
- United States
- Width
- 4.500 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperature - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- High Ampacity Connections
- Cord Type
- All Portable
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Special Features
- Watertight
- Type
- Watertight Plug
- Wire Size
- #14 AWG to #10 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 430P12W
- Material - Mounting Hardware
- Cord Mounted
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 14.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet Height
- 45.000 in
- Pallet Weight
- 561.600 lb.
- NAICS Code
- 335931A104
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextFood Processing Guide
Current / Amperage Rating30 A
Industry Standard(s)CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
Amperage Rating30 A
ColorOrange
Environmental ConditionsWatertight
Number of Poles3-Pole
PhaseSingle Phase
StandardCSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
Voltage Rating125/250 VAC
Voltage Rating Description125/250 VAC
Display SizeStandard Sized
Number Of Poles3-Pole
StyleStandard Service
Description - InvoicePS, IEC, PLUG, 3P4W, 30A 125/250V, W/T
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA12A180
Current Rating30 A
SeriesHBL Heavy Duty
BOX SIZE10.000x22.600x9.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585404561
Case Weight16.300 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
