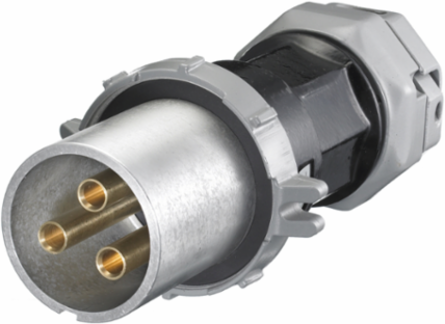

Hubbell Wiring Device-Kellems HBL4200PS1W Insulgrip Watertight Plug, 200A 600V AC, 3-Pole 4-Wire
- MPN: HBL4200PS1W
- UPC: 783585011424
- PPN: HBL-HBL4200PS1W
- UNSPSC: 39121402
CAD
$2250.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Plug, 200A 600V AC, 3-Pole 4- Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight
Features
- Locking ring provides UL Type 4X watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 8.100 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Amperage Rating
- 200 A
- Cord Type
- All Portable
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Standard
- CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
- Voltage Rating
- 600 VAC/250 VDC
- Voltage Rating Description
- 600V AC/250V DC
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 4-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Current Rating
- 200 A
- Series
- UL 1686 Class 1 Insulgrip® Series
- BOX SIZE
- 6.100x15.900x8.100 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585011424
- Case Weight
- 10.550 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 42.700 in
- Pallet Weight
- 1033.900 lb.
- NAICS Code
- 335931A104
Current / Amperage Rating200 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
Standards - RoHS Compliance StatusCM
ApplicationMetallic with Nylon Shroud
Environmental ConditionsWatertight
Number of Poles3-Pole
Special FeaturesWatertight
TypeWatertight Plug
Wire Size#1 AWG to #250MCM
General Literature Asset 1 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized
Number Of Poles3-Pole
StyleStandard Service, Style 1
Description - InvoicePS, INS, PLUG, 3P4W, 200A 600V, S1
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.550 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585011423
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
