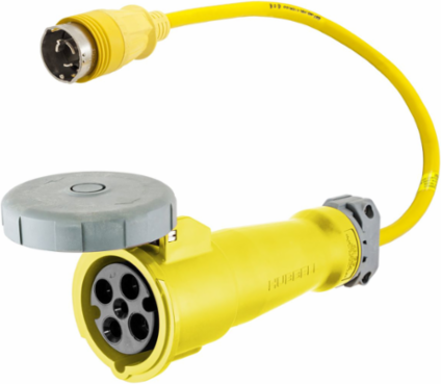

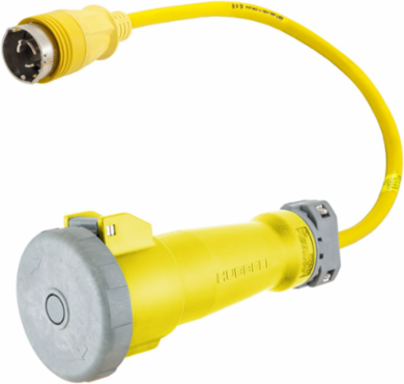

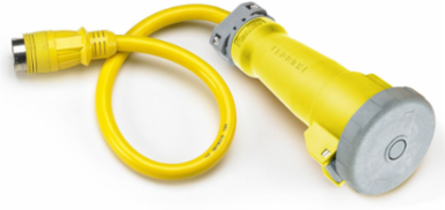

Hubbell Wiring Device-Kellems HBL61CM100 Marine Grade IEC Pin and Sleeve Adapter 100A to 50A, 125/250V, Corrosion Resistant
- MPN: HBL61CM100
- UPC: 783585809748
- PPN: HBL-HBL61CM100
- UNSPSC: 39121710
CAD
$3952.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Marine Grade, Ship-to-Shore, Adapter, 100A 125/250V to 50A 125/250V 3-Pole 4-Wire Grounding, Furnished with Hardware
Features
- Factory assembled
- Rugged, watertight and corrosion resistant
- 100% inspection to ensure quality performance
- Corrosion Resistant
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 15.500 in
- Standards - RoHS Compliance Status
- CM
- Application
- Straight Adapter
- Insulation
- Insulated Body
- Operating Temperature
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Special Features
- Corrosion Resistant
- Wattage
- 25000
- Number Of Pins
- Male- 50A 125/250V AC Twist-Lock®
- Description - Invoice
- ADAPTER, 100A 125/250V TO 50A 125/250V
- Harmonization Code
- 8544429090
- MSDS Flag
- No
- Current Rating
- 100 A
- Receptacle Type
- Female- 100A 125/250V Pin and Sleeve
- BOX SIZE
- (in)
- Each - Pack Description
- Each
- NAICS Code
- 335999B100
Current / Amperage Rating100 A
PerformanceEnvironmental - Moisture Resistance - IP55 Suitability
Amperage Rating100 A
ColorYellow
Number of PinsMale- 50A 125/250V AC Twist-Lock®
ReceptacleFemale- 100A 125/250V Pin and Sleeve
Voltage Rating125/250 VAC
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A180
MaterialComposite
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585809748
Lowest Level UOMEach
