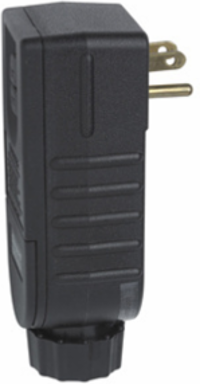

Pass & Seymour 1597CMA Portable 15A Right Angle Self-Test GFCI Plug, Automatic Reset
- MPN: 1597CMA
- UPC: 785007381597
- PPN: P-S-1597CMA
CAD
$74.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Plug this Right Angle Portable GFCI (Automatic Reset) into a standard outlet to provide GFCI protection when attached by the user to corded portable equipment such as drills, saws, pressure washers, power painters, etc. outdoors, on construction sites, or anywhere a GFCI-protected receptacle might not be accessible. Ground-Fault Circuit Interrupters (GFCI) help prevent electrical shock caused by ground faults.GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Automatically energizes portable GFCI for use upon plug-in and after loss of primary power.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.75 in
- Height
- 4.0 in
- Weight
- 0.5 lb
- Product Line
- Pass & Seymour
- Country of Origin
- China
- Standard
- cULus
- Voltage
- 125.0 V
- Seismic Tested
- No
- Features
- Right Angle
- Features
- Portable GFCI
- Is Tamper-Resistant
- No
- Is Weather Resistant
- No
- Connection Location
- Bottom
- Application Sector
- Commercial
- Application Sector
- Residential
- Operating Temperature Max
- 66.0 °C
- Operating Temperature
- -35°-66°C
ColorBlack
FinishMatte
Width2.0 in
StandardUL
StandardRoHS
Amperage15.0 A
Outlet TypeGFCI
Number of Wires3.0
Outlet TypeSelf-Test
Indoor/OutdoorOutdoor
Wall Plate IncludedNo
FeaturesAutomatic Reset
Number of PolesDouble Pole
NEMA Configuration Code5-15P
Application SectorMulti-Dwelling Unit
Operating Temperature Min-35.0 °C
Warranty Type1-Year Limited Warranty
