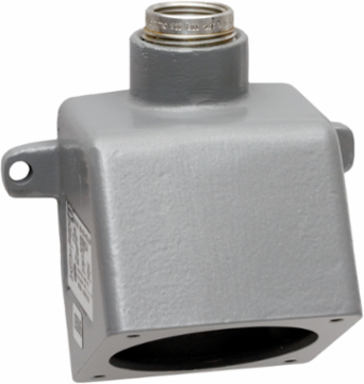

Hubbell Wiring Device-Kellems MB601W Insulgrip Angled Back Box for 60A 1 Inch Hub, Aluminum Construction
- MPN: MB601W
- UPC: 783585010724
- PPN: HBL-MB601W
- UNSPSC: 39121332
CAD
$162.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Accessories, Back Box, For 60A 1" NPT Hub, Angled, Mounting Screws Included, Gray Cast Aluminum
Features
- Industrial Grade
- Accessories
- Back Box
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Industry Standard(s) | UL Listed |
| Application | Metallic |
| Knockouts | 1" NPT Hub |
| Special Features | Standard Product |
| Temperature Range | Limited By Device |
| Engineering Drawing 1 Display Text | MB601W AutoCAD Drawing |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Number Of Outlets | Accepts 1-Device |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A12A200 |
| Construction | Cast |
| Series | Back Boxes and Adapters Series |
| BOX SIZE | 5.800x7.700x6.900 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585010724 |
| Case Weight | 2.700 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 46.400 in |
| Pallet Weight | 777.600 lb. |
| NAICS Code | 3359326103 |
| Width | 6.900 in |
|---|---|
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Cable Entry | Through Hub |
| Number of Outlet | Accepts 1-Device |
| Standard | UL Listed |
| Type | Angled Back Box |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| Display Size | For 60 Amp Devices |
| Style | 15 Degree |
| Description - Invoice | PS, INS, ANG BOX, 60A, 1" HUB, ALUM |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Material - Mounting Hardware | Mounting Screws |
| Material | Aluminum |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.700 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585010723 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
