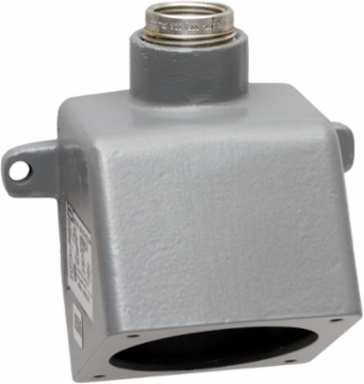

Hubbell Wiring Device-Kellems MB302W Insulgrip 30A Back Box, 1" NPT Hub, Gray Cast Aluminum
- MPN: MB302W
- UPC: 783585010328
- PPN: HBL-MB302W
- UNSPSC: 39121332
CAD
$137.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Accessories, Back Box, For 30A 1" NPT Hub, Angled, Mounting Screws Included, Gray Cast Aluminum
Features
- Industrial Grade
- Accessories
- Back Box
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | MB302W AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | Pulp & Paper Solutions |
| Country of Origin | China |
| Industry Standard(s) | UL Listed |
| Standards - RoHS Compliance Status | CM |
| Cable Entry | Through Hub |
| Number of Outlet | Accepts 1-Device |
| Standard | UL Listed |
| Type | Back Box |
| Number Of Outlets | Accepts 1-Device |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A12A200 |
| Construction | Cast |
| Series | Back Boxes and Adapters Series |
| BOX SIZE | 8.900x11.600x11.700 (in) |
| Carton - Number of Sub Packs | 2 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585010328 |
| Case Weight | 3.850 lb. |
| Lowest Level UOM | Each |
| General Literature Asset 1 Display Text | Wiring Device Solutions for Strategic Manufacturing Facilities |
|---|---|
| General Literature Asset 3 Display Text | PULP & PAPER SOLUTIONS |
| Width | 5.400 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Application | Metallic |
| Knockouts | 1" NPT Hub |
| Special Features | Standard Product |
| Temperature Range | Limited By Device |
| Display Size | For 30 Amp Devices |
| Style | 30 Degree |
| Description - Invoice | PS, INS, ANG BOX, 30A, 1" HUB, ALUM |
| Harmonization Code | 7616999999 |
| MSDS Flag | No |
| Material - Mounting Hardware | Mounting Screws |
| Material | Aluminum |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.850 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 2 |
| Each - Pack Description | Each |
| NAICS Code | 3359326103 |
