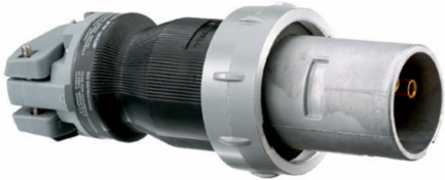

Hubbell Wiring Device-Kellems HBL4100PS1W Heavy Duty Watertight 100A 600V AC Male Plug, 3-Pole 4-Wire
- MPN: HBL4100PS1W
- UPC: 783585011028
- PPN: HBL-HBL4100PS1W
- UNSPSC: 39121402
CAD
$1158.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 600V AC, 3-Pole 4- Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight
Features
- Locking ring provides UL Type 4X watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 100 A
- Industry Standard(s)
- CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
- Amperage Rating
- 100 A
- Cord Type
- All Portable
- NEMA Rating
- Non-NEMA
- Number of Wires
- 4-Wire
- Standard
- CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
- Voltage Rating
- 600 VAC/250 VDC
- Voltage Rating Description
- 600V AC/250V DC
- Display Size
- Standard Sized
- Number Of Poles
- 3-Pole
- Style
- Standard Service, Style 1
- Description - Invoice
- PS, INS, PLUG, 3P4W, 100A 600V, S1
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 24.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 6 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
General Literature Asset 2 Display TextPulp & Paper Solutions
Country of OriginUnited States
Width5.700 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
ApplicationMetallic with Nylon Shroud
Environmental ConditionsWatertight
Number of Poles3-Pole
Special FeaturesWatertight
TypeWatertight Plug
Wire Size#4 AWG to #2 AWG
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
Current Rating100 A
SeriesUL 1686 Class 1 Insulgrip®
BOX SIZE12.300x17.200x10.500 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack783585011028
Case Weight24.450 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
