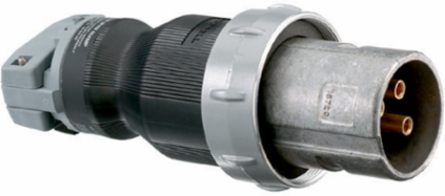

Hubbell Wiring Device-Kellems HBL360PS2W Heavy Duty Insulgrip Plug, 60A 600V AC, 2-Pole 3-Wire, Watertight
- MPN: HBL360PS2W
- UPC: 783585010489
- PPN: HBL-HBL360PS2W
- UNSPSC: 39121402
CAD
$849.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 600V AC, 2-Pole 3-Wire Grounding Style 2, Terminal Screws, Gray and Black, Watertight
Features
- Locking ring provides UL Type 4X watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Width
- 4.810 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Application
- Metallic with Nylon Shroud
- Environmental Conditions
- Watertight
- Number of Poles
- 2-Pole
- Special Features
- Watertight
- Type
- Watertight Plug
- Wire Size
- #6 AWG to #4 AWG
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Wires
- 3-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Current Rating
- 60 A
- Series
- UL 1686 Class 1 Insulgrip®
- BOX SIZE
- 10.745x23.125x10.745 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585010489
- Each - Pack Description
- Each
- NAICS Code
- 335931A104
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating60 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
Amperage Rating60 A
Cord TypeAll Portable
NEMA RatingNon-NEMA
Number of Wires3-Wire
StandardCSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
Voltage Rating600 VAC/250 VDC
Voltage Rating Description600V AC/250V DC
Display SizeStandard Sized
Number Of Poles2-Pole
StyleStandard Service, Style 2
Description - InvoicePS, INS, PLUG, 2P3W, 60A 600V, S2
Harmonization Code8536699999
MSDS FlagNo
Material - Mounting HardwareCord Mounted
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack25.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
