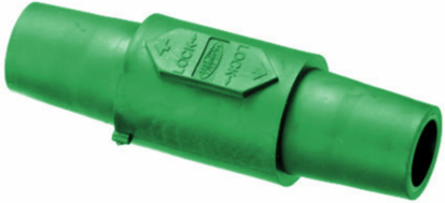

Bryant HBLDFGN Heavy Duty 400A 600V AC/DC Double Female Coupler, Industrial Grade, Green
Bryant HBLDFGN Heavy Duty 400A 600V AC/DC Double Female Coupler, Industrial Grade, Green
- MPN: HBLDFGN
- UPC: 783585003337
- PPN: HBL-HBLDFGN
- UNSPSC: 39121710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$83.02/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Double Female, Coupler, 400A 600V AC/DC, Single Conductor, Pre-Wired, Green
Features
- Industrial Grade
- Double Female
- Coupler
- Standard Product
Specifications
Specifications
- Country of Origin
- China
- Width
- 1.510 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
- Application
- High Ampacity
- Insulation
- Insulated Body
- Operating Temperature
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Standard
- UL 498 And UL1691
- Wattage
- 360000
- Number Of Pins
- 1) In, 1) Out
- Description - Invoice
- SINGLEPOLE, DOUBLE FEMALE CON, GN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material
- Brass and Elastomer
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.600 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Pallet - GTIN - Package
- 70783585003336
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating400 A
Industry Standard(s)UL 498 And UL1691
Amperage Rating400 A
ColorGreen
Number of Pins1) In, 1) Out
Special FeaturesStandard Product
TypeGender Reversing Devices
Voltage Rating Description600V AC/DC
StyleDouble Female
Freight Class Code06168002
Image Actual Or RepresentativeA
Current Rating400 A
Series16 Series
BOX SIZE3.900x15.400x8.800 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585003337
Case Weight8.150 lb.
Pallet Height46.800 in
Pallet Weight1369.200 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
