Bryant

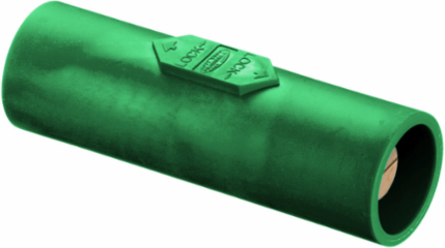

Bryant HBLDMGN Heavy Duty Single Pole Coupler 400A 600V AC/DC, Green, Insulated Body, Double Male

Heavy Duty Single Pole Coupler 400A 600V AC/DC, Green, Insulated Body, Double Male
  • MPN: HBLDMGN
  • UPC: 783585002743
  • PPN: HBL-HBLDMGN
  • UNSPSC: 39121710

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$83.02/ EA

Description

Heavy Duty Products, Single Pole Devices, Industrial Grade, Double Male, Coupler, 400A 600V AC/DC, Single Conductor, Pre-Wired, Green

Features

  • Industrial Grade
  • Double Male
  • Coupler
  • Standard Product

Specifications

Specifications

Country of Origin
China
Width
1.600 in
Performance
Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
Application
High Ampacity
Insulation
Insulated Body
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Standard
UL 498 And UL1691
Wattage
360000
Number Of Pins
1) In, 1) Out
Description - Invoice
SINGLEPOLE, DOUBLE MALE CON, GN
Harmonization Code
8536698000
MSDS Flag
No
Material
Brass and Elastomer
Base Unit of Measure
EA
Carton - Gross Weight per Pack
8.600 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Pallet - GTIN - Package
70783585002742
Pallet Length
48.000 in
Pallet Width
40.000 in
Current / Amperage Rating400 A
Industry Standard(s)UL 498 And UL1691
Amperage Rating400 A
ColorGreen
Number of Pins1) In, 1) Out
Special FeaturesStandard Product
TypeGender Reversing Devices
Voltage Rating Description600V AC/DC
StyleDouble Male
Freight Class Code06168002
Image Actual Or RepresentativeA
Current Rating400 A
Series16 Series
BOX SIZE3.800x15.300x8.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585002743
Case Weight3.097 lb.
Pallet Height45.600 in
Pallet Weight1260.000 lb.

Certifications
