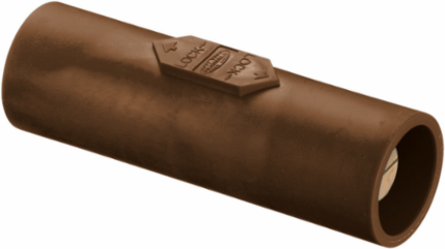

Bryant HBLDMBN High Ampacity Coupler, 400A 600V AC/DC, Double Male, Insulated Body, Brown
Bryant HBLDMBN High Ampacity Coupler, 400A 600V AC/DC, Double Male, Insulated Body, Brown
- MPN: HBLDMBN
- UPC: 783585002774
- PPN: HBL-HBLDMBN
- UNSPSC: 39121710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$151.95/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Double Male, Coupler, 400A 600V AC/DC, Single Conductor, Pre-Wired, Brown
Features
- Industrial Grade
- Double Male
- Coupler
- Standard Product
Specifications
Specifications
- Country of Origin
- CN
- Width
- 1.710 in
- Industry Standard(s)
- UL 498 And UL1691
- Amperage Rating
- 400 A
- Color
- Brown
- Number of Pins
- 1) In, 1) Out
- Special Features
- Standard Product
- Type
- Gender Reversing Devices
- Voltage Rating Description
- 600V AC/DC
- Style
- Double Male
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Current Rating
- 400 A
- Series
- 16 Series
- BOX SIZE
- 3.600x15.400x8.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585002774
- Case Weight
- 7.550 lb.
Current / Amperage Rating400 A
Each - Width1.710 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
ApplicationHigh Ampacity
InsulationInsulated Body
Operating TemperatureMax Continuous- 75 Degrees C, Minimum- -40 Without Impact
StandardUL 498 And UL1691
Wattage360000
Number Of Pins1) In, 1) Out
Description - InvoiceSINGLEPOLE, DOUBLE MALE CON, BR
Harmonization Code8536698000
MSDS FlagNo
MaterialBrass and Elastomer
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
