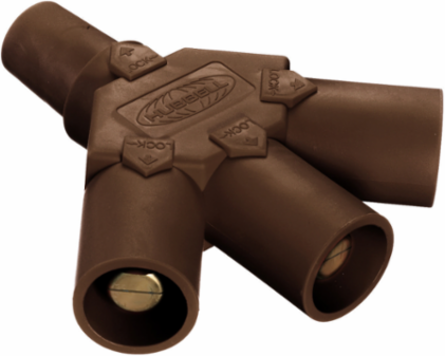

Bryant HBLF3MBN Heavy Duty Tri-Tap Female-Male-Male-Male Device, 400A 600V, 6 Inch Width, Brown
- MPN: HBLF3MBN
- UPC: 783585112428
- PPN: HBL-HBLF3MBN
- UNSPSC: 39121710
CAD
$361.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female-Male-Male-Male, Tri-Tap, 400A 600V AC/DC, Single Conductor, Pre-Wired, Brown
Features
- Industrial Grade
- Female-Male-Male-Male
- Tri-Tap
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 6.000 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
- Application
- High Ampacity
- Insulation
- Insulated Body
- Operating Temperature
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Standard
- UL 498 And UL1691
- Wattage
- 360000
- Number Of Pins
- 1) In, 3) Out- Male-Female-Female-Female
- Description - Invoice
- SINGLEPOLE, TRI TAP, F-M-M-M, BROWN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material
- Brass and Elastomer
- Base Unit of Measure
- EA
Current / Amperage Rating400 A
Industry Standard(s)UL 498 And UL1691
Amperage Rating400 A
ColorBrown
Number of Pins1) In, 3) Out- Male-Female-Female-Female
Special FeaturesStandard Product
TypeTees and 3-Fers
Voltage Rating Description600V AC/DC
Style3-Fer Female-Male-Male-Male
Freight Class Code06168002
Image Actual Or RepresentativeA
Current Rating400 A
Series16 Series
Carton - SCC-14 Next Lower Level Sub Pack00783585112428
Certifications
- EU RoHS Indicator
- Contact Manufacturer
