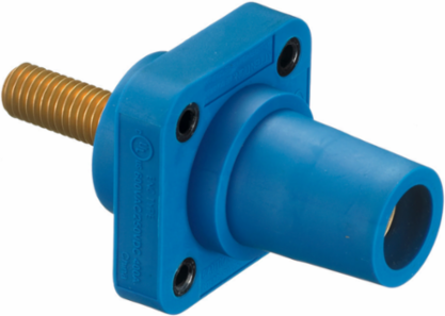

Bryant HBLFRSCBL Industrial Grade Female Receptacle 300/400A 600V AC/DC, Single Conductor, Blue
Bryant HBLFRSCBL Industrial Grade Female Receptacle 300/400A 600V AC/DC, Single Conductor, Blue
- MPN: HBLFRSCBL
- UPC: 783585093611
- PPN: HBL-HBLFRSCBL
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$74.26/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, Single Conductor, Threaded Mounting Holes, Stud Termination, Blue
Features
- Industrial Grade
- Female Receptacle
- 300/400A 600V AC/DC
- Standard
Specifications
Specifications
- Country of Origin
- CN
- Width
- 2.250 in
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Amperage Rating
- 400 A
- Color
- Blue
- NEMA Rating
- Non-NEMA
- Number of Wires
- 1-Wire
- Special Features
- Standard
- Type
- Receptacle
- Wire Size
- #4 AWG to #4/0 AWG
- Connectivity
- Stud Type
- Nema Rating
- Non-NEMA
- Number Of Wires
- 1-Wire
- Description - Invoice
- SINGLEPOLE,300/400A FEM STUD RECP,BL,THR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 400 A
- Series
- 16 Series
- BOX SIZE
- 5.000x22.600x11.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585093611
- Case Weight
- 14.250 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.000 in
- Pallet Weight
- 897.750 lb.
Current / Amperage Rating400 A
Each - Width2.250 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
ApplicationHigh Ampacity Connections
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles1-Pole
PhaseSingle Phase
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Wattage240000
Voltage Rating Description600V AC/DC
Display SizeStandard Sized Product
Number Of Poles1-Pole
StyleStud Type, Threaded Hole Mounting, Female
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareThreaded Thru-Hole
MaterialElastomer / Elastomeric
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585093610
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
