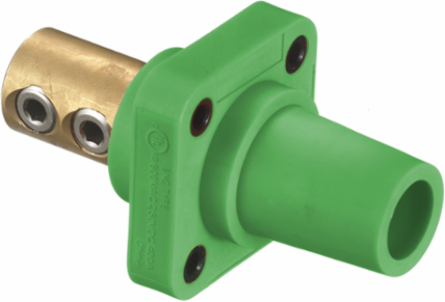

Bryant HBLFRGN Industrial Grade Female Receptacle 300A/400A 600V AC/DC Single Pole
Bryant HBLFRGN Industrial Grade Female Receptacle 300A/400A 600V AC/DC Single Pole
- MPN: HBLFRGN
- UPC: 783585112626
- PPN: HBL-HBLFRGN
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$74.26/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, Single Conductor, Set Screw, Green
Features
- Industrial Grade
- Female Receptacle
- 300/400A 600V AC/DC
- Standard
Specifications
Specifications
- Country of Origin
- CN
- Width
- 2.210 in
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Amperage Rating
- 400 A
- Color
- Green
- NEMA Rating
- Non-NEMA
- Number of Wires
- 1-Wire
- Special Features
- Standard
- Type
- Receptacle
- Wire Size
- #4 AWG to #4/0 AWG
- Connectivity
- Double Set Screw
- Nema Rating
- Non-NEMA
- Number Of Wires
- 1-Wire
- Description - Invoice
- SINGLEPOLE, 300/400A FEM RCPT, SCREW, GN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Threaded Thru-Hole
- Material
- Elastomer / Elastomeric
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.1 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585112625
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating400 A
Each - Width2.210 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
ApplicationHigh Ampacity Connections
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles1-Pole
PhaseSingle Phase
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Wattage240000
Voltage Rating Description600V AC/DC
Display SizeStandard Sized Product
Number Of Poles1-Pole
StyleFemale Double Set Screw
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHBL400RTGN
Current Rating400 A
Series16 Series
BOX SIZE5.300x22.500x11.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585112626
Case Weight8.333 lb.
Lowest Level UOMEach
Pallet Height47.700 in
Pallet Weight1212.750 lb.
Certifications
- EU RoHS Indicator
- Yes
