Bryant

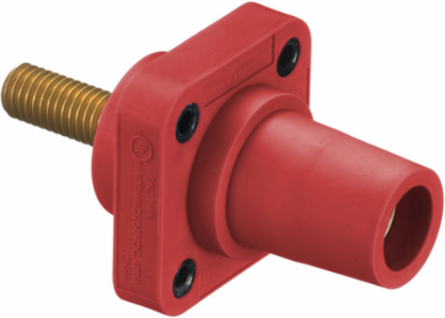

Bryant HBLFRSCR Heavy Duty Female Receptacle, 1-Pole, 400A Max, 600V AC/DC, Red

Heavy Duty Female Receptacle, 1-Pole, 400A Max, 600V AC/DC, Red
  • MPN: HBLFRSCR
  • UPC: 783585093604
  • PPN: HBL-HBLFRSCR
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$78.72/ EA

Description

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, Single Conductor, Threaded Mounting Holes, Stud Termination, Red

Features

  • Industrial Grade
  • Female Receptacle
  • 300/400A 600V AC/DC
  • Standard

Specifications

Specifications

Country of Origin
China
Width
2.200 in
Performance
Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Application
High Ampacity Connections
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Number of Poles
1-Pole
Phase
Single Phase
Standard
National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Wattage
240000
Voltage Rating Description
600V AC/DC
Display Size
Standard Sized Product
Number Of Poles
1-Pole
Style
Stud Type, Threaded Hole Mounting, Female
Freight Class Code
06168002
Image Actual Or Representative
A
Material - Mounting Hardware
Threaded Thru-Hole
Material
Elastomer / Elastomeric
Base Unit of Measure
EA
Carton - Gross Weight per Pack
5.8 lb.
Carton - Pack Description
Carton
Carton - Total Units
25 EA
Each - Pack Description
Each
Pallet - GTIN - Package
70783585093603
Pallet Length
48.000 in
Pallet Width
40.000 in
Current / Amperage Rating400 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating400 A
ColorRed
NEMA RatingNon-NEMA
Number of Wires1-Wire
Special FeaturesStandard
TypeReceptacle
Wire Size#4 AWG to #4/0 AWG
ConnectivityStud Type
Nema RatingNon-NEMA
Number Of Wires1-Wire
Description - InvoiceSINGLEPOLE,300/400A FEM STUD RECEP,RD,TH
Harmonization Code8536698000
MSDS FlagNo
Current Rating400 A
Series16 Series
BOX SIZE5.200x22.500x11.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585093604
Case Weight14.450 lb.
Lowest Level UOMEach
Pallet Height46.800 in
Pallet Weight910.350 lb.

Certifications

EU RoHS Indicator
