Leviton

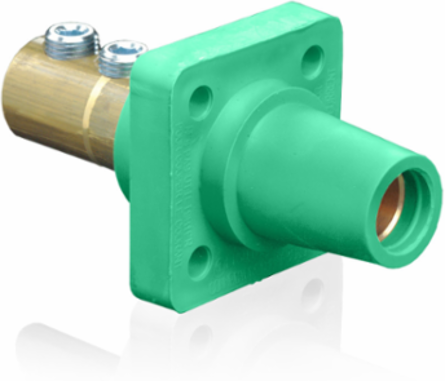

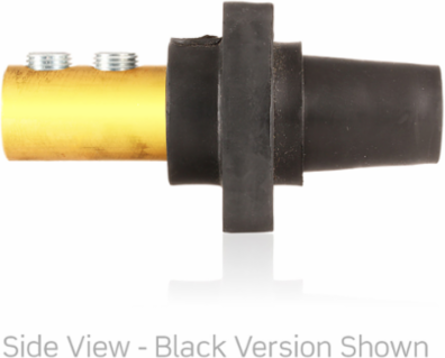

Leviton 16R22-UG Female Receptacle 90-Degree 2/0-4/0 AWG 400 Amp Max, Double Set Screw Termination

Female Receptacle 90-Degree 2/0-4/0 AWG 400 Amp Max, Double Set Screw Termination
Female Receptacle 90-Degree 2/0-4/0 AWG 400 Amp Max, Double Set Screw Termination
  • MPN: 16R22-UG
  • UPC: 078477716809
  • PPN: LEV-16R22-UG

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$107.77/ EA

Description

16 Series Taper Nose Cam-Type Female Panel Mount Receptacle, 90-Degree, 2/0 - 4/0 AWG, Double Set Screw, 400 Amp Max, 600VAC/DC, Green

Features

  • Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
  • Single or double set screw or crimp tube termination
  • NEMA 3R rated for outdoor use when mated
  • Designed with cylindrical profile to reduce snap
  • UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
  • Color-coding provides fast and easy phase identification
  • Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Specifications

Standards and Certifications

CSA Standard
1691
UL
1691, 508 – 35k A / 600V Short Circuit Current Rating
NEMA RatingType 3R

Material Specifications

Contacts
Brass
Strain ReliefCopper Wire

Mechanical Specifications

Cable Range
2/0-4/0 AWG
Gender
Female
Connection TypeDouble Set Screw

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Color
Green

Electrical Specifications

Max. Amperage
400 Amp
Max. Voltage600 Volt

Downloads
