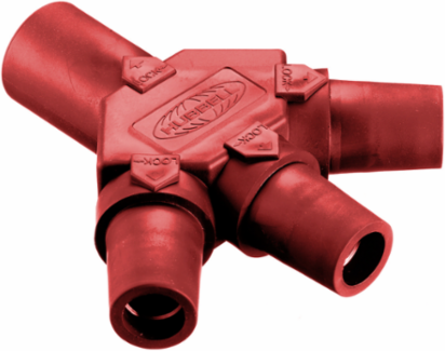

Bryant HBLM3FR Heavy Duty Tri-Tap Male-Female-Female-Female Connector, 300/400A, 600V AC/DC, 6 Inch Width
Bryant HBLM3FR Heavy Duty Tri-Tap Male-Female-Female-Female Connector, 300/400A, 600V AC/DC, 6 Inch Width
- MPN: HBLM3FR
- UPC: 783585112800
- PPN: HBL-HBLM3FR
- UNSPSC: 39121710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$330.29/ EA
Description
Heavy Duty Single Pole Industrial Grade Male-Female-Female-Female, Tri-Tap, 300/400A 600V AC/DC, Single Conductor, Pre-Wired
Features
- Industrial Grade
- Male-Female-Female-Female
- Tri-Tap
- Standard Product
Specifications
Specifications
- Country of Origin
- CN
- Width
- 6.000 in
- Industry Standard(s)
- UL 498 And UL1691
- Amperage Rating
- 400 A
- Color
- Red
- Number of Pins
- 1) In, 3) Out- Male-Female-Female-Female
- Special Features
- Standard Product
- Type
- Tees and 3-Fers
- Voltage Rating Description
- 600V AC/DC
- Style
- 3-Fer Male-Female-Female-Female
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Current Rating
- 400 A
- Series
- 16 Series
- BOX SIZE
- 3.800x15.700x9.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585112800
- Case Weight
- 23.400 lb.
Current / Amperage Rating400 A
Each - Width6.000 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
ApplicationHigh Ampacity
InsulationInsulated Body
Operating TemperatureMax Continuous- 75 Degrees C, Minimum- -40 Without Impact
StandardUL 498 And UL1691
Wattage360000
Number Of Pins1) In, 3) Out- Male-Female-Female-Female
Description - InvoiceSINGLEPOLE, TRI TAP, M-F-F-F, RED
Harmonization Code8536698000
MSDS FlagNo
MaterialBrass and Elastomer
Base Unit of MeasureEA
Carton - Gross Weight per Pack43.450 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Certifications
- EU RoHS Indicator
- Contact Manufacturer
