Pass & Seymour PS40MBG 400A 600V Male Cam Type Plug, 6-7/8 Inch Length, Green
- MPN: PS40MBG
- UPC: 785007308099
- PPN: P-S-PS40MBG
- UNSPSC: 39121421
CAD
$74.49
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

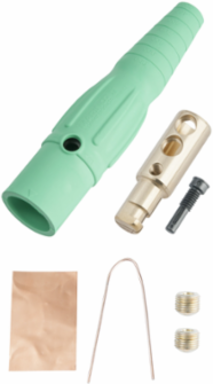

400A 600V Male Cam Type Plug, 6-7/8 Inch Length, Green
Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity.
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product.
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity.
- Heavy-duty hex set screws allow greater termination torque.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Color | Green |
| Amperage | 400.0 A |
| Standard | UL; cCSAus |
| Environmental Conditions | Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4 |
| Application Sector | Commercial; Industrial |
| Features | Chemical Resistant |
| Indoor/Outdoor | Indoor |
| Terminal Accommodation | 2/0 - 4/0 |
| Operating Temperature Max | 75.0 °C |
| Operating Temperature | -40°-75°C |
| Length | 6.875 in |
|---|---|
| Product Line | Pass & Seymour |
| Number of Poles | Single Pole |
| NEMA Rating | NEMA 3R and 4 for indoor applications |
| Special Features | Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying." |
| Voltage | 600.0 V |
| Flanged | No |
| Warranty Type | 1-Year |
| Type | Connector |
| Operating Temperature Min | -40.0 °C |
