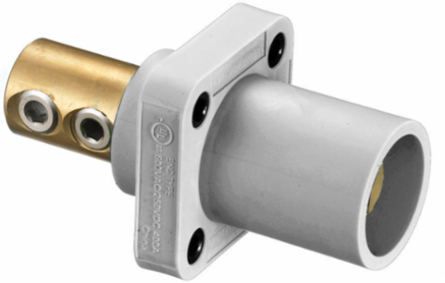

Bryant HBLMRW Heavy Duty Single Pole Male Receptacle, 400A 600V AC/DC, Thermoplastic, White
- MPN: HBLMRW
- UPC: 783585113074
- PPN: HBL-HBLMRW
- UNSPSC: 39121406
CAD
$78.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Receptacle, 300/400A 600V AC/DC, Single Conductor, Set Screw, White
Features
- Industrial Grade
- Male
- Receptacle
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.300 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
- Application
- High Ampacity Connections
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 1-Pole
- Special Features
- Standard Product
- Type
- Receptacle
- Wire Size
- #4 AWG to #4/0 AWG
- Connectivity
- Screw Terminals
- Nema Rating
- Non-NEMA
- Style
- Double Set Screw Male
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL400ITW
- Current Rating
- 400 A
- Series
- 16 Series
- BOX SIZE
- 5.200x22.400x11.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585113074
- Case Weight
- 8.210 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.800 in
- Pallet Weight
- 1250.550 lb.
Current / Amperage Rating400 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating400 A
ColorWhite
NEMA RatingNon-NEMA
PhaseSingle Phase
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Wattage240000
Voltage Rating Description600V AC/DC
Display SizeStandard Sized Product
Number Of Poles1-Pole
Description - InvoiceSINGLEPOLE, 300/400A MALE RCPT, SCRW, WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.1 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585113073
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
