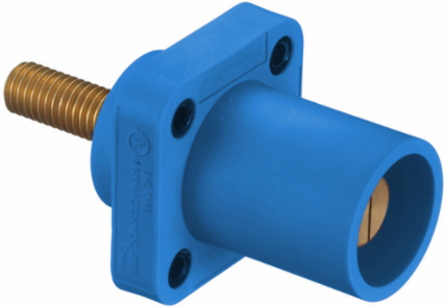

Bryant HBLMRSCBL Heavy Duty Male Receptacle, 400A 600V AC/DC, 1-Pole, Stud Type, Blue
- MPN: HBLMRSCBL
- UPC: 783585093536
- PPN: HBL-HBLMRSCBL
- UNSPSC: 39121406
CAD
$78.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male Receptacle, 300/400A 600V AC/DC, Single Conductor, Threaded Mounting Holes, Stud Termination, Blue
Features
- Industrial Grade
- Male Receptacle
- 300/400A 600V AC/DC
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 6.000 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
- Application
- High Ampacity Connections
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 1-Pole
- Special Features
- Standard Product
- Type
- Receptacle
- Wire Size
- #4 AWG to #4/0 AWG
- Connectivity
- Screw Terminals
- Nema Rating
- Non-NEMA
- Style
- Stud Type, Threaded Hole Mounting, Male
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBLMRSCBLM1
- Current Rating
- 400 A
- Series
- 16 Series
- BOX SIZE
- 4.900x22.600x11.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585093536
- Case Weight
- 14.600 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 919.800 lb.
Current / Amperage Rating400 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating400 A
ColorBlue
NEMA RatingNon-NEMA
PhaseSingle Phase
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Wattage240000
Voltage Rating Description600V AC/DC
Display SizeStandard Sized Product
Number Of Poles1-Pole
Description - InvoiceSINGLEPOLE,300/400A MALE STUD RECEP,BL,T
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.7 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585093535
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
