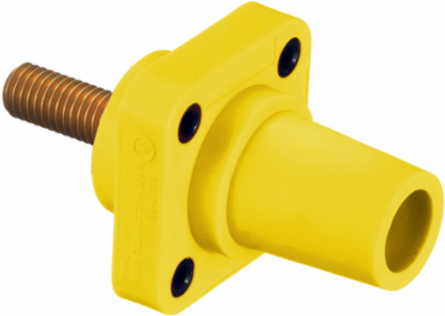

Bryant HBLFRSY Heavy Duty Single Pole Female Receptacle 300/400A 600V AC/DC, 1-Pole, Stud Type
- MPN: HBLFRSY
- UPC: 783585112725
- PPN: HBL-HBLFRSY
- UNSPSC: 39121406
CAD
$78.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Single Pole Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, Single Conductor, Threaded Stud
Features
- Industrial Grade
- Female Receptacle
- 300/400A 600V AC/DC
- Standard
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.230 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
- Application
- High Ampacity Connections
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 1-Pole
- Phase
- Single Phase
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Wattage
- 240000
- Voltage Rating Description
- 600V AC/DC
- Display Size
- Standard Sized Product
- Number Of Poles
- 1-Pole
- Style
- Stud Type, Through Hole Mounting, Female
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBLFRSYM1
- Current Rating
- 400 A
- Series
- 16 Series
- BOX SIZE
- 5.100x22.500x11.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585112725
- Case Weight
- 16.000 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.900 in
- Pallet Weight
- 1008.000 lb.
Current / Amperage Rating400 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating400 A
ColorYellow
NEMA RatingNon-NEMA
Number of Wires1-Wire
Special FeaturesStandard
TypeReceptacle
Wire Size#4 AWG to #4/0 AWG
ConnectivityStud Type
Nema RatingNon-NEMA
Number Of Wires1-Wire
Description - InvoiceSINGLEPOLE, 300/400A FEM STUD RECEP, YL
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareThreaded Thru-Hole
MaterialElastomer / Elastomeric
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.7 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585112724
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
