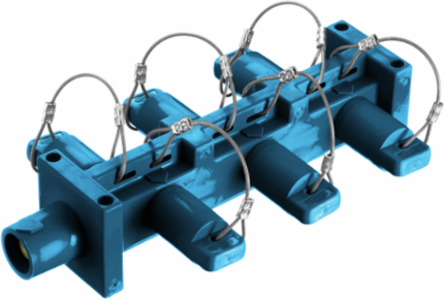

Bryant HBL7DBBL Heavy Duty Single Pole Distribution Block, 400A 600V AC/DC, 1 Male to 6 Female, Blue
- MPN: HBL7DBBL
- UPC: 783585112374
- PPN: HBL-HBL7DBBL
- UNSPSC: 39121710
CAD
$1087.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male to 6) Females, Distribution Block, 400A 600V AC/DC, Single Conductor, Pre-Wired, Blue
Features
- Industrial Grade
- Male to 6) Females
- Distribution Block
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 9.800 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
- Application
- High Ampacity
- Insulation
- Insulated Body
- Operating Temperature
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Standard
- UL 498 And UL1691
- Wattage
- 360000
- Number Of Pins
- 1) In, 6) Out- Male 6) Female
- Description - Invoice
- SINGLEPOLE, DISTRIBUTION BLOCK, BL
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material
- Brass and Elastomer
- Base Unit of Measure
- EA
Current / Amperage Rating400 A
Industry Standard(s)UL 498 And UL1691
Amperage Rating400 A
ColorBlue
Number of Pins1) In, 6) Out- Male 6) Female
Special FeaturesStandard Product
TypeDistribution Block
Voltage Rating Description600V AC/DC
Style1-Male, 6-Female
Freight Class Code06168002
Image Actual Or RepresentativeA
Current Rating400 A
Series16 Series
Carton - SCC-14 Next Lower Level Sub Pack00783585112374
Certifications
- EU RoHS Indicator
- Contact Manufacturer
