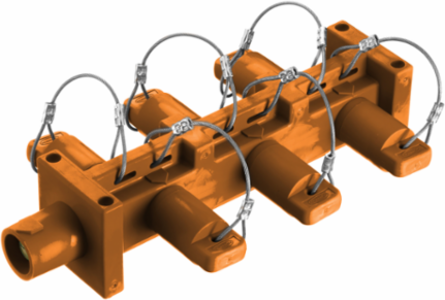

Bryant HBL7DBO Heavy Duty Distribution Block, 400A 600V AC/DC, Male to 6 Female, 9.800 Inch Width
Bryant HBL7DBO Heavy Duty Distribution Block, 400A 600V AC/DC, Male to 6 Female, 9.800 Inch Width
- MPN: HBL7DBO
- UPC: 783585048796
- PPN: HBL-HBL7DBO
- UNSPSC: 39121710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1026.28/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male to 6) Females, Distribution Block, 400A 600V AC/DC, Single Conductor, Pre-Wired, Orange
Features
- Industrial Grade
- Male to 6) Females
- Distribution Block
- Standard Product
Specifications
Specifications
- Country of Origin
- CN
- Width
- 9.800 in
- Industry Standard(s)
- UL 498 And UL1691
- Amperage Rating
- 400 A
- Color
- Orange
- Number of Pins
- 1) In, 6) Out- Male 6) Female
- Special Features
- Standard Product
- Type
- Distribution Block
- Voltage Rating Description
- 600V AC/DC
- Style
- 1-Male, 6-Female
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Current Rating
- 400 A
- Series
- 16 Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585048796
Current / Amperage Rating400 A
Each - Width9.800 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device
ApplicationHigh Ampacity
InsulationInsulated Body
Operating TemperatureMax Continuous- 75 Degrees C, Minimum- -40 Without Impact
StandardUL 498 And UL1691
Wattage360000
Number Of Pins1) In, 6) Out- Male 6) Female
Description - InvoiceSINGLEPOLE, DISTRIBUTION BLOCK, OR
Harmonization Code8536698000
MSDS FlagNo
MaterialBrass and Elastomer
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
