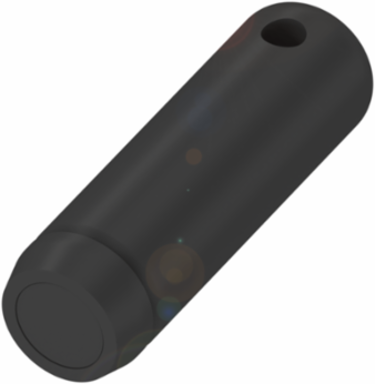

Balluff BIS M-122-01/A-ZC1 HF data carriers (13.56 MHz) BIS M-122-01/A-ZC1
- MPN: BIS M-122-01/A-ZC1
- PPN: BAL-BIS0049
CAD
$207.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
BIS M uses high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and/or DIN ISO 14443. The wide variety of passive data carriers with various dimensions, configurations, memory sizes, operating temperatures, materials, antenna technology, mounting options and ranges allows you to tackle nearly any technical task. BIS M is the most robust system with absolute data security.
Documentation & Downloads
Specifications
Key Specifications
- Product Group
- HF (13.56 MHz)
- Antenna type
- round
- Memory type
- EEPROM
- Storage temperature
- -25-85 °C
- Housing material
- POM, PA 12, PU casting
- Installation
- metal-free (clear zone)on metalflush in metal
DimensionØ 15 x 50 mm
UID serial number, read-only4 Byte
User data, read/write752 Byte
Ambient temperature-25-70 °C
IP ratingIP67
Approval/ConformityCE, WEEE
