Balluff

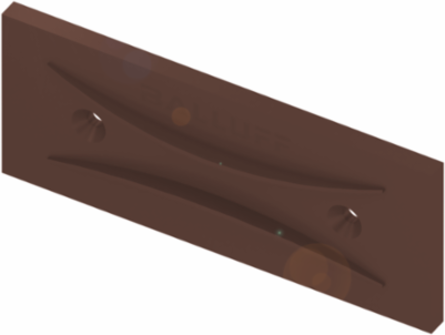

Balluff BIS M-136-03/L-HT HF data carriers (13.56 MHz) BIS M-136-03/L-HT

HF data carriers (13.56 MHz) BIS M-136-03/L-HT
  • MPN: BIS M-136-03/L-HT
  • PPN: BAL-BIS00Y1

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$182.98/ EA

Description

BIS M uses high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and/or DIN ISO 14443. The wide variety of passive data carriers with various dimensions, configurations, memory sizes, operating temperatures, materials, antenna technology, mounting options and ranges allows you to tackle nearly any technical task. BIS M is the most robust system with absolute data security.

Specifications

Specifications

Product Group
HF (13.56 MHz)
Antenna type
right-angle
Memory type
EEPROM
User data, read/write
112 Byte
Ambient temperature
-40-85 °C
IP rating
IP68
Approval/Conformity
CE, Ecolab, WEEE
Dimension52 x 11.5 x 128 mm
UID serial number, read-only8 Byte
Supported data carrier typesDIN ISO 15693
Storage temperature temporary-40-220 °C 1x1000 h, 1500x30 min
Housing materialPPS
Installationmetal-free (clear zone)
