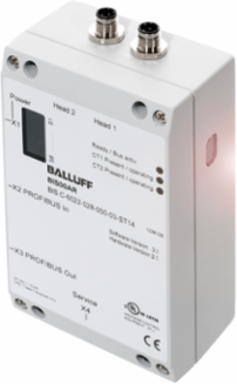

Balluff BIS M-6022-019-050-03-ST14 HF Processor Unit, 19.2-28.8 VDC, IP65, Male 5-pin Connector, 2 Read Heads
Balluff BIS M-6022-019-050-03-ST14 HF Processor Unit, 19.2-28.8 VDC, IP65, Male 5-pin Connector, 2 Read Heads
- MPN: BIS M-6022-019-050-03-ST14
- PPN: BAL-BIS00F0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4581.59/ EA
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. The processor units process the data captured by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.
Specifications
Specifications
- Product Group
- HF (13.56 MHz)
- Supported RFID technologies
- HF 13.56 MHz (BIS M)
- Operating voltage Ub
- 19.2-28.8 VDC
- Ambient temperature
- 0-60 °C
- Approval/Conformity
- CE, cULus, WEEE
InterfaceProfibus DP Slavegalvanically isolated
Number of connectable R/W heads / antennas2
Housing materialAluminum, Die casting
IP ratingIP65 with connector
ConnectionMale, 5-pin, B-codedM12x1-Female, 5-pin, B-codedMale, 5-pin
