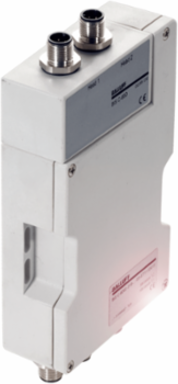

Balluff BIS C-6002-028-650-03-ST11 LF Processor Unit, 70/455 kHz, CE, IP65, ABS Housing, 2 R/W Heads
Balluff BIS C-6002-028-650-03-ST11 LF Processor Unit, 70/455 kHz, CE, IP65, ABS Housing, 2 R/W Heads
- MPN: BIS C-6002-028-650-03-ST11
- PPN: BAL-BIS009M
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
BIS C works with low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. The processor units process the data recorded by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.
Specifications
Specifications
- Product Group
- LF (70/455 kHz)
- Supported RFID technologies
- LF 70/455 kHz (BIS C )
- Operating voltage Ub
- 19.2-28.8 VDC
- Ambient temperature
- 0-60 °C
- Approval/Conformity
- CE, cULus, WEEE
InterfaceProfibus DP Slavegalvanically isolated
Number of connectable R/W heads / antennas2
Housing materialABS
IP ratingIP65 with read/write head
ConnectionMale, 5-pin, B-codedM12x1-Female, 5-pin, B-codedMale, 5-pin
